The NEW Complete Front Bumper Listing & Comparison Thread

Welcome to the most up-to-date version of the Front Bumper Comparison Thread!

Click here to read the original thread which this thread replaces: Old Complete Front Bumper Comparison

And here is a link to this same thread but in the Buyer's Guide & Product Comparison Section of the Forum: https://www.fjcruiserforums.com/forum...on-thread.html


Below are all the currently available front bumpers for our FJ Cruisers. Please check with manufacturers and vendors for latest pricing and availability as they are frequently subject to change.

Click on manufacturer name to go to their website. Feel free to post discussions in this thread about bumpers, ask questions, post your own photos, etc. Enjoy!


__________________________________________________ __________________________________________________ ____________________________________________

Addictive Desert Designs

Airbag Compatibility - ?

Bull Bar - Yes; optional hoop

Construction - .120" Wall Mild Steel; .120" Wall Steel Tube

Finish - Bumper Color: Hammer Black; Panel Color: Satin Black

Light mounts - Yes; 30" Rigid LED Light Bar on hoop; 20" Rigid LED light bar in bumper; Two Rigid Dually or Dually D2 lights on side panels

Price - $1,665 (No Winch Mount); $1,900 (Winch Mount); $600 - $1,700 Add winch; $300 - $950 Top Hoop LEDs; $230 - $665 Lower Section LEDs; $190 - $360 Side Panel LEDs

Shackle mounts - No

Weight - 100 lbs

Winch fitment - up to 10,500 lb winch

Matching Rear Bumper – Yes



Bumper Thread - https://www.fjcruiserforums.com/forum...ers-works.html
___________________________________________


Addicted Offroad

Airbag Compatibility - ?

Bull Bar - Single Hoop

Construction - ?

Finish - Raw, bare metal

Light mounts - Not on hoop but can be ordered with flush mounted LEDs for fog/driving lights and LED turn signals.

Price - $904; $30 for LED turn signals; $90 for fog/driving lights

Shackle mounts - No

Weight - 90 - 95 lbs

Winch fitment - Can fit winch, size unknown

Matching Rear Bumper – No



_________________________________________________

Aluminess Products

Availability - Stocked Item

Airbag Compatible - Yes

Bull Bar - Yes, Three options; Full brush guard (center hoop with two outer hoops), Bull bar (center hoop), No brush guard or bull bar

Construction - 3/16" - 1" Aluminum

Finish - Powder coated black

Light mounts - Yes; in bumper or on top of bumper, driving

Price - Full brush guard (center hoop with two outer hoops) - $1295; Bull bar (center hoop) - $1275; No brush guard or bull bar - $1250; $65 for added Crossbar; $105 for Removable Crossbar (for bumpers with winches); $65 for Receiver Hitch to be added

Shackle mounts - Yes

Weight - Full brush guard - 57lbs., Bull bar - 52lbs., No brush guard or bull bar - 43lbs.

Winch fitment - Designed for Warn XD9000 and Warn 9.5 xp-s, standard bolt pattern of 4 1/2" x 10"

Matching Rear Bumper – No



__________________________________________________ _____

ARB

Availability - Readily Available

Airbag Compatible - Yes; Actually Crash Tested by ARB

Bull Bar - Yes; Full Bull Bar

Construction - 1/8" plate(?)

Finish - Powder coated black (sandable and paintable)

Light mounts - Yes; mounts on top of bumper for driving lights and spots available for the fog light kit

Price - $1051.00; Fog Light Kit - $85; Fitting Kits also Required Depending on Model Build Year (07-09 or 10-14) - $70 to $130

Shackle mounts - No

Weight - 95 lbs

Winch fitment - Multitude of Warns (ie: Warn XD9000 or HS9500 or 9.5xp or M8000)

Matching Rear Bumper – Yes




__________________________________________________ __

ASFIR 4X4

Availability - Made to order

Airbag Compatible - ?

Bull Bar - No

Construction - All steel (made to have high strength but low weight)

Finish - Powder coat Black

Light mounts - No

Price - $1478.48 for "2006" to 2009 models - $1773.45 for 2010 to 2011

Shackle mounts - No

Weight - 88 lbs.

Winch fitment - Must Buy "Hidden Winch Mount 2006" which says "enables a small winch to be secured"

Matching Rear Bumper – No; but there is a matching skid plate set



__________________________________________________ _______

Body Armor 4x4

Note: There is an old style bumper that isn't made anymore and a new style bumper from Body Armor 4x4.

Availability - Now

Airbag Compatibility - ?

Bull Bar - Yes; welded center hoop with outer hoops (on old style bumper); No bars (on new style bumper)

Construction - solid sheet aluminum (old style); 3/16" cold rolled plated steel shell and 1/4" steel sub frame (new style)

Finish - Smooth powder coat (old style); Powder coated black, textured and E-coat base (new style)

Light mounts - Yes; 4" fog/driving light mounts in bumper

Price - $799.95 (new style)

Shackle mounts - Yes (old style & new style)

Weight - 173 lbs.

Winch fitment - Designed for up to 10,000 lb Winches

Matching Rear Bumper – Yes



__________________________________________________ _____

C4 Fabrication

Availability - 8 Weeks Production Time

Airbag Compatibility - ?

Bull Bar - No

Construction - ?

Finish - Bare Steel

Light mounts - Optional; Can be ordered with or without cut outs for Extreme Led Light Bars and Baja Designs Light Bars

Price - $525

Shackle mounts - Yes; 3/4" Thick

Weight - 50 lbs.

Winch fitment - Fits non-integrated solenoid winches from 8K - 12K (some integrated models may fit)

Matching Rear Bumper – No

Notes: Can get "C4 Fab" Logo or "FJ" Text Cut out ($35) on bumper insert.



__________________________________________________ _____


Demello Offroad

Demello Offroad FJ Cruiser Forums Thread

Availability - Now

Note: Most of their bumpers are available in Steel or Aluminum construction except for their "Pre-runner" designs

Airbag Compatibility - ?

Bull Bar - Yes depending on bumper design

Construction - Bumpers come in either Steel or Aluminum Construction; Steel bumpers - 1/8" plating, 1/2" frame mounting, 1/4" winch mount, 3/16" framing; Aluminum - 1/4" frame mount, 1/4" winch mount, 1" shackles, 3/16" plating

Finish - Steel Bumpers - Optional Black Powder Coating; Aluminum Bumpers - Standard Textured Black Powder Coating

Light mounts - Yes; 4" In-bumper lights

Price - FLAT TOP FRONT BUMPER - $950 (Steel; add powder coating for $175) - $1,445 (Aluminum)
- SINGLE HOOP FRONT BUMPER - $1025 (Steel; add powder coating for $175) - $1,525 (Aluminum
- BAJA FRONT BUMPER - $1100 (Steel; add powder coating for $175) - $1,600 (Aluminum)
- THREE HOOP FRONT BUMPER -$1,100 (Steel; add powder coating for $175) - $1,625 (Aluminum)
- EVIL EYE FRONT BUMPER - $1,175 (Steel; add powder coating for $175) - $1,575 (Aluminum)
- RALLY BUMPER - $1,625 (Aluminum only)

https://www.fjcruiserforums.com/forum...ly-bumper.html

Shackle mounts - Yes

Weight - Steel bumpers - 115-125 lbs (a few extra lbs for bumpers with hoops); Aluminum Bumpers - Appx. 55 lbs (around half the weight of the steel bumpers)

Winch fitment - 10,000 - 12,000 lb winches depending on bumper

Matching Rear Bumper – Yes; also come in steel or aluminum



__________________________________________________

Last edited by FJX2000; 05-01-2018 at 08:12 AM.
FJX2000 is offline
Sponsored Links
Advertisement

post #2 of 162 (permalink) Old 02-14-2013, 10:45 PM Thread Starter
4-Corners Moderator

FJX2000's Avatar

Join Date: Dec 2011
Location: Cortez, CO or Provo, UT
Posts: 4,788
Blog Entries: 22
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Garage
Lifetime Supporting Member
(Thread Starter)
re: The NEW Complete Front Bumper Listing & Comparison Thread

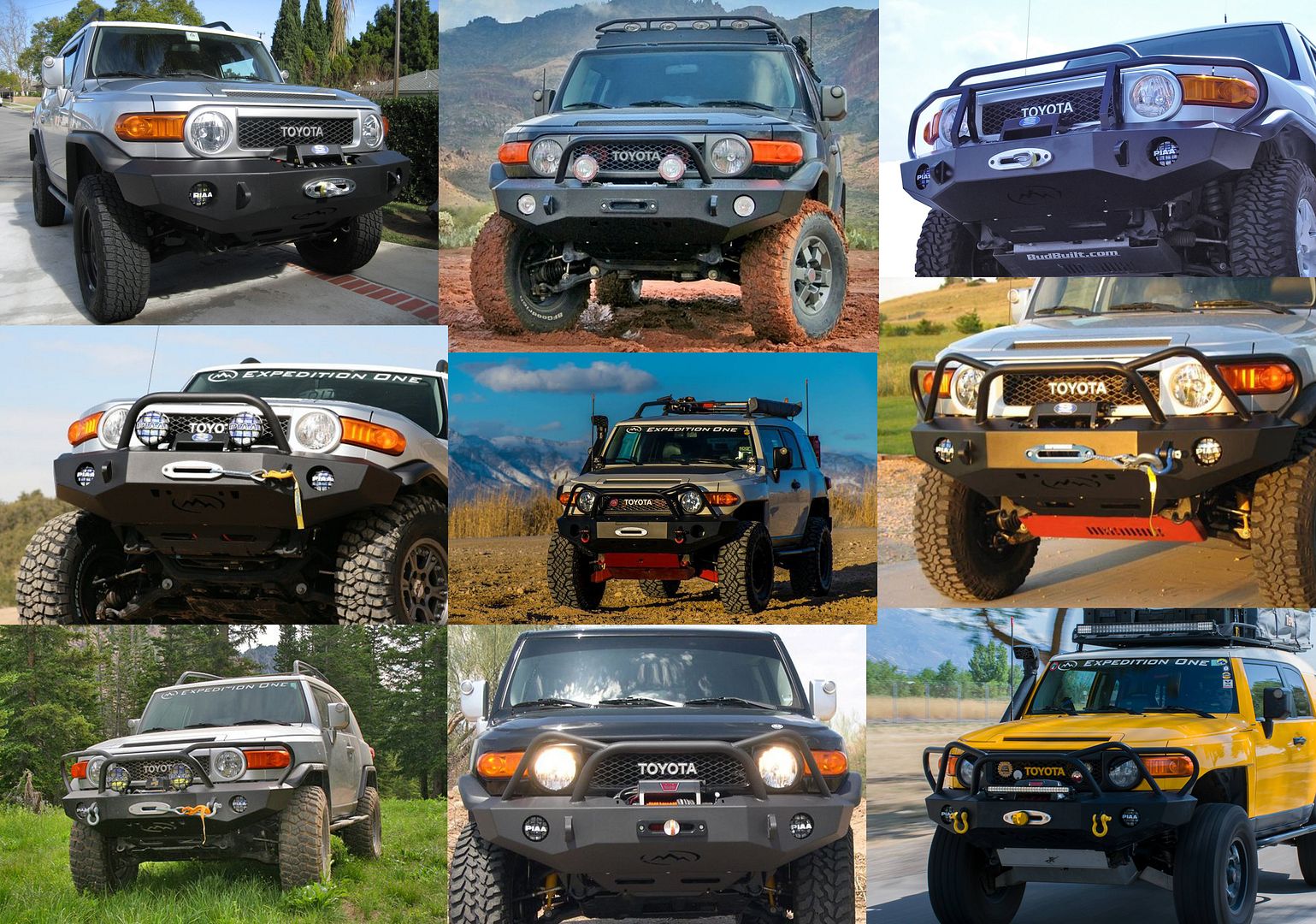

Expedition One
SUPPORTING VENDOR

Expedition One FJ Cruiser Forum Thread

Availability - Now

Airbag Compatibility - ?

Bull Bar - Yes; welded hoop(s)

Construction - 3/16" thick inner structure and 1/8" thick outer structure, .120" wall tubing

Finish - Powder coated black, smooth

Light mounts - Yes; on bumper mounting holes, and in bumper, driving or fog (4.75" integrated light ports)

Price - Trail Series Base Front Bumper (no hoop) - No Powder Coat $1140 / Add Powder Coat $1220
- Trail Series Front Bumper - No Powder Coat $1215 / Powder Coated $1295
- Trail Series Kodiak Style Front Bumper - No Powder Coat $1345 / Add Powder Coat $1425
- Trail Series Bull Bar Style Front Bumper - No Powder Coat $1515 / Powder Coated $1595
- Trail Series Diamond Style Front Bumper - No Powder Coat $1315 / Add Powder Coat $1395
- Trail Series WyoOtto Style Front Bumper - No Powder Coat $1465 / Add Powder Coat $1545

Shackle mounts - Yes

Weight - 105 lbs - 140 lbs

Winch fitment - Multitude of winch possibilities

Matching Rear Bumper – Yes


__________________________________________________ _____________-

Fab Fours

Fab Fours FJ Cruiser Forum Thread

Availability - Now

Airbag Compatibility - ?

Bull Bar - Yes or no

Construction - 3/16" throughout

Finish - Two stage powder coat or bare steel

Light mounts - Yes; Fab Fours' 90mm fog and 60mm turn indicator lights are included FREE with the Bumper

Price - $1,357.00 for winch bumper; $1,513.00 for winch bumper w/ pre-runner guard; $1,553.00 for winch bumper w/ full brush guard

Shackle mounts - Yes; 1" D-ring

Weight - 185lbs

Winch fitment - 12,000 lbs or smaller

Matching Rear Bumper – Yes



_____________________________________________

Hefty Fabworks

Availability - Built to order (14-16 week lead time)

Airbag Compatibility - ?

Bull Bar - Yes, single low hoop

Construction - 5052 H34 1/4" Aluminum Body, 3/8" mounting plates

Finish - Powder Coated in Semi Gloss Black textured finish

Light mounts - Yes; Recessed light holes for fog lights & Low hoop design allows for 20" Single Row LED Light

Price - $1,495

Shackle mounts - Yes; 1" D-ring

Weight - 1/3rd the weight of steel bumpers

Winch fitment - Recessed winch mount accepts most winches up to 9500lbs with standard 10"x4.5" mounting pattern and a non-integrated solenoid. Synthetic winch line strongly suggested.

Matching Rear Bumper – No





_____________________________________________

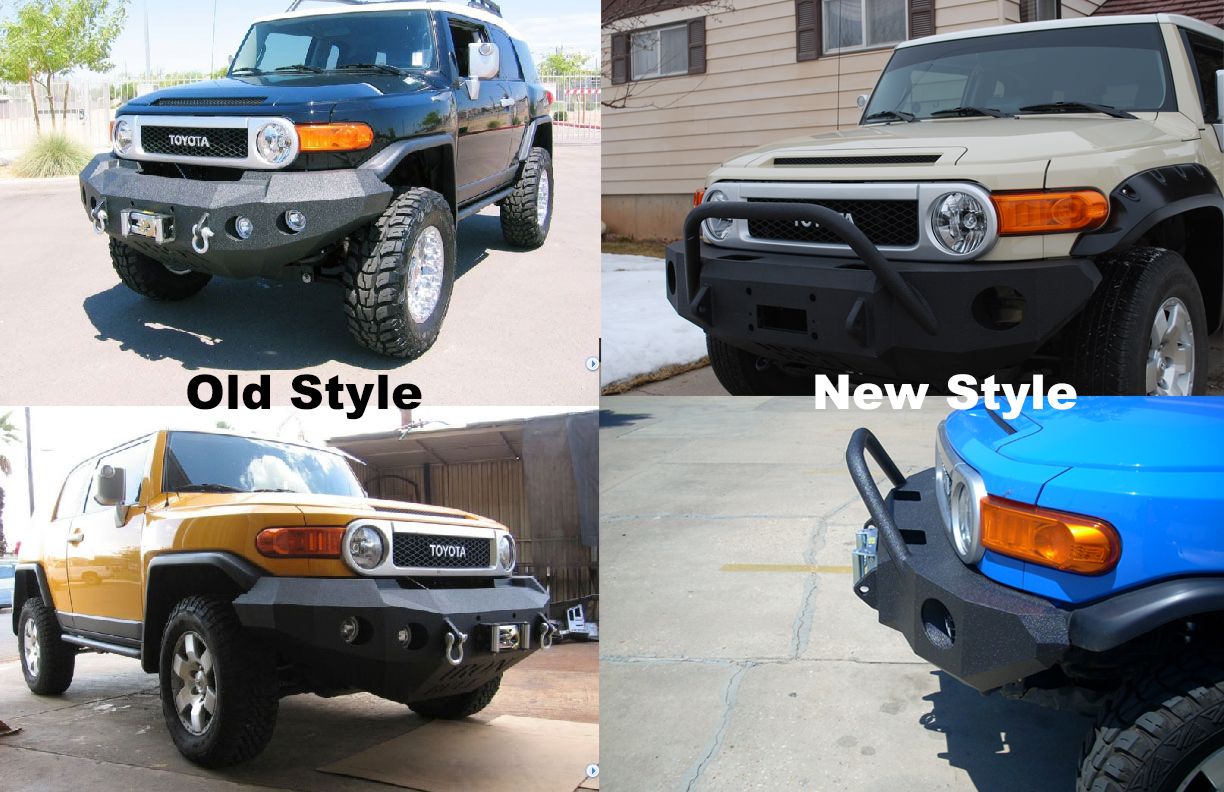

Iron Bull Bumpers

Availability - 3 weeks or less

Airbag Compatibility - ?

Bull Bar - Yes or no

Construction - 3/16" high grade A36 de-scaled premium plate steel

Finish - Black Shield; rough texture with a slightly rubberized feel (similar to Rhino Liner or LineX)

Light Mounts - Four 4" in-bumper fog light ports (old Stealth style) or two 5" in-bumper fog lights (new styles)

Price - $1,600 approx. [(grille guards are around $200 to $800 of that price and buyer can choose any of the 16 different bar designs on their website to add to the bumper) New Style]
- $1,499.00 (Old Stealth Style bumper)

Shackle mounts - Yes

Weight - 175 approx.

Winch fitment - accommodates among the largest winches on the market (10K lbs.) (also, buyer can get a front welded hitch added to their bumper or even have the hitch mount removable)

Matching Rear Bumper – No


_____________________________________

Ironman 4x4

Availability - Commercial Bull Bar - Special order 6 to 10 weeks; Deluxe Commercial Bull Bar - In Stock; Protector Bull Bar - Special Order 6 to 10 weeks

Airbag Compatibility - Yes

Bull Bar - Yes

Construction - Tough polyurethane bumpers with Steel construction, Stainless steel triple loop design on Protector Bull Bar

Finish - Black

Light Mounts - Yes (In Deluxe Commercial & Protector Bumpers); Tabs On Bars available for mounting CB Antennae

Price - Ironman 4x4 Commercial Winch Bar - $856.90
- Ironman 4x4 Deluxe Bull Bar - $997.50
- Ironman 4x4 Protector Bull Bar - $1,124.80

Shackle mounts - No

Weight - ?

Winch fitment - ?

Matching Rear Bumper – No



___________________________________

Land Cruiser Northwest

Availability - Now

Airbag Compatibility - ?

Bull Bar - Yes or no; With or without 3 hoops

Construction - 1/8"(?) Plate and 1 1/2"(?) tube

Finish - Raw or Powder Coat Finish

Light mounts - Yes; Fog Light Mounting Locations and Driving Light Mounts on 3 Hoop Version

Price - $1,495.00

Shackle mounts - No

Weight - 85 lbs

Winch fitment - Multitude of winch possibilities

Matching Rear Bumper – Yes



___________________________________


Metal Tech 4x4
SUPPORTING VENDOR

Metal Tech 4x4 Forum Thread

Availability - Now

Airbag Compatibility - ?

Bull Bar - No on Tube Bumper, Yes on Phantom Bumper

Construction - Tube Bumper - 1 ” .120 wall tube, laser cut 1/4” cold rolled steel
- Phantom Bumper - ?

Finish - Tube Bumper -Powder coated black
- Phantom Bumper - double black textured semi gloss powder coat finish

Light mounts - Tube Bumper - Yes; 2 mounting points for fog lights and 2 on top of bumper
- Phantom Bumper - Yes; 2 LED Flush Mounted Fog Light Locations and a 30" LED Bar Location

Price - Tube Bumper with Bash Plate - $949.99
- Tube Bumper with Winch Mount - $949.99 (add a 2" receiver hitch that mounts under winch for $89.95)
- Phantom Bumper Stage 1 (Bumper + Hoop but No LEDs) - $1,399
- Phantom Bumper Stage 2 (Bumper + Hoop + Flush Mounted Fog LEDs) - $1,597
- Phantom Bumper Stage 3 (Bumper + Hoop + LED Fogs + 30" In-Bumper LED Bar) - $1,846
- Phantom Bumper Grille Insert (For Stage 1 & 2 Bumpers Without Center LED Bar) - $49.00

Shackle mounts - Tube Bumper - No
- Phantom Bumper - Yes

Weight - Tube Bumper - 19 lbs. heavier than stock bumper
- Phantom Bumper - ?

Winch fitment - Tube Bumper - Varitey of winches
- Phantom Bumper - "requires a winch with a low profile clutch handle as seen on Warn M8000, Ironman 4x4 and other winches"

Matching Rear Bumper – Yes



___________________________________

N-FAB Products

Availability - Now

Airbag Compatibility - Yes

Bull Bar - No

Construction - .095 Wall Tubing, Solid 1 Piece Construction, 3/16" aluminum skid plate

Finish - RSP Pre-Runner - Textured Black Powder Coat; M-RDS Radius Pre-Runner - Gloss or Textured Black Powder Coat

Light mounts - Yes; RSP Replacement fits three 9" off-road/HID lights; M-RDS fits 30" LED Light Bar

Price - R.S.P. Pre-Runner - $900
- M-RDS Radius Pre-Runner - $1,110

Shackle mounts - No

Weight - ?

Winch fitment - None

Matching Rear Bumper – No



__________________________________________________ _________

Northwest Trail Innovations

Availability - Now (as a kit)

Airbag Compatibility - ???

Bull Bar - Optional: Center Tube Grille Guard ($45) or Full Grille Guard (Center hoop with outer hoops to protect headlights) [$90]

Construction - CNC cut and skeletonized (for weight reduction) 5/16” and 1/4" plate for the inner winch mount structure, 10ga plate for the outer structure

Finish - Raw steel

Light mounts - Optional: Recessed Light Mounts ($35) and 42W Round LED Lights ($120)

Price - $440.00

Shackle mounts - Yes: 3/4" Mounts

Weight - 120 lbs w/o tubing for grille guard hoops

Winch fitment - Yes: 9000 lb Engo Steel Cable Winch Available ($307.00)

Matching Rear Bumper – No

Notes - This is a kit, so you order it and then assemble it yourself via welding. Can be ordered to compensate for 1" to 3" body lift kits.



__________________________________________________ _________

Orange Boxx Design & Fabrication

Availability - Now

Airbag Compatible - ?

Bull Bar - Yes or No; Stinger Hoop or Base Bumper w/ No Hoop

Construction - Steel tubing; 1.750 DOM tube & .250 metal splash plates

Finish - Raw, Primed, Painted, or Powder Coated

Light mounts - ?

Price - Low Boy Raw Tube Bumper - $875
- Base Raw Stinger Tube Bumper - $949
- Fully Loaded Raw Stinger Tube Bumper - $1,254
- Skid Plate - $125
- Upper Splash Plates (Plain, Holes, or Letters) - $85


Shackle mounts - Available

Weight - 75-95 lbs.

Winch fitment - 8,000 to 12,500 lbs

Matching Rear Bumper – No


Last edited by FJX2000; 05-01-2018 at 12:17 AM.
FJX2000 is offline
post #3 of 162 (permalink) Old 02-14-2013, 10:47 PM Thread Starter
4-Corners Moderator

FJX2000's Avatar

Join Date: Dec 2011
Location: Cortez, CO or Provo, UT
Posts: 4,788
Blog Entries: 22
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Garage
Lifetime Supporting Member
(Thread Starter)
re: The NEW Complete Front Bumper Listing & Comparison Thread

Paramount Automotive

Availability - ???

Airbag Compatibility - ?

Bull Bar - Single Hoop

Construction - 5/32" steel

Finish - Textured Powder Coat

Light mounts - Yes; 2 on the single hoop, website says 2 LED lights are included

Price - Unknown

Shackle mounts - Yes; High strength D-Ring mounts welded both inside and out; D-Rings included - 4.75 ton capacity

Weight - 110 lbs

Winch fitment - Yes; Up to 12,000 lbs

Matching Rear Bumper – Yes




___________________________________

Pelfreybilt

Availability - 6-8 Weeks

Airbag Compatibility - ?

Bull Bar - No Hoop, Center Hoop, or Full Hoops

Construction - 1/4″ Steel Reinforcement Brackets, 20″ light bar cutout filler plate included with purchase, Frame and winch mount made from 1/4″ steel, Outer shell made from 10 gauge steel

Finish - Bare Metal or Black Powder Coat

Light mounts - Yes; 20″ Single Row LED light bar and fog light cutouts

Price - $950 to $1,300

Shackle mounts - Yes; 3/4″ D-ring mounts

Weight - 100-110 lbs

Winch fitment - Yes

Matching Rear Bumper – No (Not Yet)




___________________________________

Proline 4wd Equipment

Availability - Made to order in 4 Weeks

Airbag Compatibility - ?

Bull Bar - Yes: Single Large Hoop on the "R1 Bumper" or low profile bull bar on the "Rally Bumper"

Construction - 1/4" and 3/16″ cold rolled steel construction, CNC plasma cut, MIG welded

Finish - Bare Metal or Black Powder Coat ($175) [ More Powder Coating Options Available - Call for colors; High gloss, matte, satin, and texture finishes are available]

Light mounts - Yes; Two 3″ square light ports for LED cubes (on R1 Bumper) and two tabs for mounting lights on bar/hoop

Price - $1025 - $1088

Shackle mounts - No

Weight - 170 lbs

Winch fitment - Yes (Zeon Winch may require extra modification to fit)

Matching Rear Bumper – No




___________________________________



Relentless Fabrication

Availability - 4 to 6+ months (all bumpers are custom ordered and hand made) 1 - 2 weeks extra for powdercoating

Airbag Compatibility - ?

Bull Bar - Yes or No; Single Hoop (Defender), 3 Hoop (Predator), or Single with supports (Summit)

Construction - 3/16" steel with solid 3/4" thick recovery points.

Finish - bare or matte black powder coat ($175)

Light mounts - Yes; $50 for Round Bumper Cutouts and $60 for square cutouts

Price - Stealth - $899
- Defender - $979
- Summit - $1019
- Predator - $1049

Shackle mounts - Yes; 3/4" for steel bumpers; 1" for aluminium bumpers

Weight - 120 lbs

Winch fitment - Yes

Matching Rear Bumper - No


________________________________

RESZ Fabrication

Availability - 4 to 6 weeks

Airbag Compatibility - ?

Bull Bar - None, single, or 3 hoop designs. Flat or stinger style center hoop. Flat or slanted ("angry") outer hoops.

Construction - Steel - 1/4″ thick frame and 1/8″ thick outer shell; 1.75 x .120 DOM steel tube and are reinforced with gussets that run about 3/4 of the way up the hoop

Finish - bare metal or powder coat

Light mounts - Yes for fogs; 3.5" circle or square

Price - RESZ Fab V1 - $950 to $1,400 - Very customizable hoop configurations, light mounts, and powder coating - Ideal for FJs with factory plastic fenders (as it extends further out)
- RESZ Fab V2 - $825 to $1,450 - Very customizable hoop configurations, light mounts, and powder coating - Ideal for FJs without factory plastic fenders
- RESZ Fab V2.5 - $1,275 to $1,575 - Customizable hoop configurations, optional light mounts, powder coating, perfect for integrated winches like Warn's Zeon line, double shackle mounts on either side

Shackle mounts - Yes; D-ring clevises are 1″ thick and are welded to both the frame and outer shell

Weight - 75 - 100 lbs

Winch fitment - Yes; 12,000 lbs

Matching Rear Bumper - No


___________________________________


Road Armor

Availability - Now

Airbag Compatibility - ?

Bull Bar - Yes or no

Construction - 3/16" steel outer construction with 1/4" internal construction; bull bars are 2" .120 Tube

Finish - Satin black or raw metal

Light mounts - Yes, two 4" in-bumper lights

Price - Website Says "Call for Price" but last it was listed as; Stealth Base Bumper - $1,500; Stealth Front Bumper w/ Bull bar - $1,660; Stealth Front Bumper w/ Titan Guard - $2,151

Shackle mounts - Yes

Weight - 270 - 320 lbs. shipping weight

Winch fitment - 9,500 winch

Warranty - LIFETIME GUARANTEE AGAINST BREAKAGE

Matching Rear Bumper – Yes


_______________________________________________

Rocktek

Availability - No longer made

Airbag Compatibility - ?

Bull Bar – Integrated, Full bull bar w/light hoops available

Construction – ?

Finish – Painted black

Light mounts – Yes

Price - ???

Shackle mounts - Yes

Weight – ?

Winch fitment – Multiple applications. Call for info.

Matching Rear Bumper – Yes


_________________________________________

Shrockworks 4x4 Products

Shrockworks FJ Cruiser Forums Thread

Availability - Now

Airbag Compatibility - ?

Bull Bar – Yes or no, single hoop available or also hoop with additional light hoops

Construction – main shell is made from 3/16" HRP&O plate steel; internal structure and bracketry is made from 1/4" plate steel; standard aluminum skid

Finish – Black Powder coat finish; Textured black powder coat; or bare steel

Light mounts – Yes; integrated mounts for 4" aftermarket lights; mounts for aftermarket lights on top of the bumper

Price - $1,049.00 standard price; minus $90 for bare steel finish; minus $20 for center hoop only or $45 for no hoops at all; in-bumper lights, on bumper lights, and recovery shackles can all be ordered as well

Note: 2010 to 2014 FJs need new washer bottle which is sold by Shrockworks

Shackle mounts - Yes; 1" thick recovery tabs

Weight – 110 lbs.

Winch fitment – accommodates most remote solenoid winches up to 9,500 lbs

Matching Rear Bumper – No


____________________________________________

Smittybilt

Availability - Now

Airbag Compatibility - ?

Bull Bar – No

Construction – 3/16" & 1/4" cold roll steel

Finish – Two Stage Matte Black Finish Powder Coat Finish

Light mounts – Yes; Driving & Fog Lights

Price - $800

Shackle mounts - Yes; Solid Mount D-Rings - Welds on the inside and out

Weight – 150 lbs

Winch fitment – Winch Mount System that can hold up to a 16,500 lb winch

Matching Rear Bumper - No



_________________________________________

Last edited by FJX2000; 05-01-2018 at 09:09 AM.
FJX2000 is offline
Sponsored Links
Advertisement

post #4 of 162 (permalink) Old 02-14-2013, 10:47 PM Thread Starter
4-Corners Moderator

FJX2000's Avatar

Join Date: Dec 2011
Location: Cortez, CO or Provo, UT
Posts: 4,788
Blog Entries: 22
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Garage
Lifetime Supporting Member
(Thread Starter)
re: The NEW Complete Front Bumper Listing & Comparison Thread

Trailworx Fabrication

Airbag Compatibility - ?

Bull Bar - Yes or no; Single Hoop or 3-Hoop Versions available as well as Stingers and "Evil Eye Hoops"

Construction - 1.75″ DOM tubing and finished with aluminum bash plates

Finish - Powdercoat Black Wrinkle or Raw metal

Light mounts - Yes; tabs on bar, and flush mounted LEDs for "Summit" Bumper

Price - "Summit Bumper" $995.00–$1,194.95; Tube Bumper $695.00–$995.00

Shackle mounts - Custom

Weight - N/A

Winch fitment - Optional

Matching Rear Bumper – No


_______________________________________

U.S. Off Road

Airbag Compatibility - ?

Bull Bar - None

Construction - .250" steel with a .125" facia

Finish - Raw or durable textured Teflon impregnated powder coat (custom colors available)

Light mounts - Yes; 2 mounts for Dually-style LEDs and they sell brackets that mount where the fairlead mounts for 12" LED bars to be added

Price - $500

Shackle mounts - Yes; 1" wide shackle mounts are drilled .890" in diameter for .875" diameter or smaller pins which is common for a 3/4" shackle

Weight - Light; website claims there will be no affect on gas mileage or aerodynamics

Winch fitment - Will accept most winches with industry standard 10" x 4.5" bolt pattern

Matching Rear Bumper – No


_______________________________________

VPR 4x4

Availability - Now

Airbag Compatibility - ?

Bull Bar - No, but VPR4x4 stinger may be able to be added

Construction - Steel A36 Lightweight design; 1/4" plate reinforcements and mountings

Finish - Black textured powder coat finish

Light mounts - Yes

Price - $1,400.00

Shackle mounts - Yes; 1" D-Ring mounts

Weight - 109.79 lbs

Winch fitment - WARN 16.5

Matching Rear Bumper – Yes



___________________________________


Warn

Availability - Now

Airbag Compatibility - ?

Bull Bar - Yes; 3/4 bumper width hoop, welded

Construction - 1/8" Plate, with 1/4" winch mount

Finish - Powder coated black

Light mounts - Yes; 2 on bumper top and 2 for fog lights on lower bumper (near the skid plate)

Price - $1,199.99

Shackle mounts - No

Weight - 173 lbs.

Winch fitment - Up to 12,000 lbs - accepts PowerPlant HP & HD, Endurance 12.0, VR12, VR10, 9.5cti, 9.5xp, XD9i, XD9, VR8, M8, M6

Matching Rear Bumper – Yes



______________________________________

Warrior Products

Warrior Products FJ Cruiser Forums Thread

Availability - Now

Airbag Compatibility - ?

Bull Bar - Yes; 1 1/2” round steel tubing

Construction - 1/8" steel

Finish - Powder coated black

Light mounts - No, but lights can be added with purchase of additional kit from Warrior

Price - $800 (bumper only) to $1,013 (Bumper w/ brush guard)

Shackle mounts - Yes

Weight - 52 lbs (Bumper only w/o brush guard) to 91 (Winch Bumper w/ D-Ring Mounts & Brush Guard) lbs

Winch fitment - fit most popular winches in the 8,000-10,000 lbs range that have removable solenoid packs

Matching Rear Bumper – Yes


Last edited by FJX2000; 05-01-2018 at 08:20 AM.
FJX2000 is offline
post #5 of 162 (permalink) Old 02-14-2013, 11:08 PM
Forum Veteran

4.5-by-4.5's Avatar

Join Date: Apr 2012
Location: arkansas
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The NEW Complete Front Bumper Listing and Comparison Thread, UPDATED!!!

Hmm exp one diamond or evil eye??


Sent from AutoGuide.com App
4.5-by-4.5 is offline
post #6 of 162 (permalink) Old 02-14-2013, 11:15 PM
Supporting Vendor

FredtheFJ's Avatar

Join Date: Jul 2012
Location: Hooper, Utah
Posts: 2,887
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Garage
Lifetime Supporting Member
re: The NEW Complete Front Bumper Listing & Comparison Thread

Whoa!!! Great write up!


^^Click for build thread!

Caleb- [email protected]

-We rise, born in the flesh. I will not let this be my regret!-
FredtheFJ is offline
post #7 of 162 (permalink) Old 02-14-2013, 11:21 PM Thread Starter
4-Corners Moderator

FJX2000's Avatar

Join Date: Dec 2011
Location: Cortez, CO or Provo, UT
Posts: 4,788
Blog Entries: 22
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Garage
Lifetime Supporting Member
(Thread Starter)
re: The NEW Complete Front Bumper Listing & Comparison Thread

Quote:
4.5-by-4.5 previously said: View Post
Hmm exp one diamond or evil eye??


Sent from AutoGuide.com App
Well I don't put EVERY picture of EVERY bumper, just some of the main ones. Plus, the evil eye is Demello.

And thanks Caleb!

But if any info is incorrect ot anything is wrong, please just let me know and I'll make changes as needed!!

Enjoy!!!!

Last edited by FJX2000; 02-14-2013 at 11:25 PM.
FJX2000 is offline
post #8 of 162 (permalink) Old 02-14-2013, 11:37 PM
Forum Superstar

Layonnn's Avatar

Join Date: Mar 2007
Location: Baton Rouge
Posts: 16,793
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Lifetime Supporting Member
re: The NEW Complete Front Bumper Listing & Comparison Thread

FJX2000, thank you very much for taking this on to keep it updated and edit as needed. Much appreciated.

I have deemed it sticky worthy. Keep up the good work, and maybe i'll give you a share of my moderator salary.



p.s. it's zero dollars

2001 UZJ-100 Land Cruiser - 35" MTRs, ARBs fr/rr, 4.88s, ARB front, BIOR rear & skids, Radflo 2.5s, OME springs, 1" BL, WKOR rails, DT headers
1997 FZJ-80 Locked - Sold
2007 Supercharged FJ Cruiser - Sold
To see what me and Roux have been up to, check out our instagram page: Laytonsky
-Layton

TLCA# 20623

Last edited by Layonnn; 02-14-2013 at 11:40 PM.
Layonnn is offline
post #9 of 162 (permalink) Old 02-14-2013, 11:38 PM
Forum Superstar

Old Cruiser's Avatar

Join Date: Sep 2009
Location: Waiting for the next contract....
Posts: 13,321
Mentioned: 53 Post(s)
Tagged: 7 Thread(s)
Quoted: 686 Post(s)
Lifetime Supporting Member
re: The NEW Complete Front Bumper Listing & Comparison Thread

Another great round up

Great job!


The Crack Rock Toyeti- 2010 "almost stock"... SOLD to Colin
The Build-->https://www.fjcruiserforums.com/forum...ck-toyeti.html

The Epic Adventure-->https://www.fjcruiserforums.com/forum...adventure.html

The GTR Build- Meet Zim---> https://www.fjcruiserforums.com/forum...-meet-zim.html
Old Cruiser is offline
post #10 of 162 (permalink) Old 02-15-2013, 12:10 AM
Forum Superstar

tornadolax11's Avatar

Join Date: Oct 2008
Location: Chattanooga, TN/Birmingham, AL
Posts: 1,663
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
re: The NEW Complete Front Bumper Listing & Comparison Thread

Holy freaking crap, how many mg of adderall are you prescribed?

VERY good write up! There were some bumpers on there I have never seen before...but I'm still partial to my demello single hoop

'07 5AT 4x4 BC:
Icon Ext. Travel Coilovers, Icon 2" Rear Springs, Icon 2.0 V.S. Rear Shocks, Icon Tubular UCA's, Granite Ga9's 17x8, Nitto Trail Grapplers 295/70/r17, Demello Single Hoop Front, All-Pro Rear, All-Pro Sliders, All-Pro IFS Skid, Rugged Ridge 8500lb Winch, 20" KC LZR LED Bar, Rigid Dually Amber Floods, CCFL Halo Projectors, 50w 5000k TRS HID's, Flowmaster Super 44 Muffler, Volant CAI, Kenwood DNX9980, 1.25" Spidertraxx, BMC.
tornadolax11 is offline
Reply

  Toyota FJ Cruiser Forum > Toyota FJ Cruiser Discussion > 4x4 / Off-Road Tech

Tags
aftermarket , all bumpers , armor , bumper , bumpers , comparison , guide , listing , options , protection , trail armor , upgrade

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Toyota FJ Cruiser Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
