The NEW Rear Bumper Comparison Thread

After many, many years of only having a very out-of-date version this thread, here is an updated version!!

_____________________

Addictive Desert Designs

Available - Now
Price - $1,425.59 MSRP
Construction - One-Piece, Steel
Finish - Hammer Black Powder Coat
Shackle Mounts - No
Weight - 140 lb (64 kg)
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes: Reuses Factory Hitch But Remounted on Bumper
Additional Recovery Points - No
Lights: Flush Rigid SR-MF or SR-MF2 Mount
Tire Carrier - No, Factory Mount
Notes: No Cutting or Welding Required, Uses Factory Hardware


_______________________


ARB

Available - Now
Price - $877.00 MSRP
Construction - One-piece, Steel
Finish - Black Powder Coat
Shackle Mounts - Center Reciever on Optional Hitch
Weight - 30 Kg / 66 Lbs
Factory Back-up Sensor Compatible? - No
Tow Hitch - Optional - Add on Part for $115 (Includes D-Ring Mount)
Additional Recovery Points - Yes, on chassis mounts
Lights: No
Tire Carrier - No, Factory Mount, allows for 35" tire
Notes: Dual Hi-lift Jack Lifting Points


_______________________

Body Armor 4x4

Available - Now
Price - $589.95 MSRP
Construction - 3-Piece Design, 3/16” cold rolled steel plate
Finish - Dual coat Texturized Black Powder Coat
Shackle Mounts - No
Weight - ???
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Factory one non-compatible, aftermarket tow hitch required (See picture)
Additional Recovery Points - Yes, center recovery point
Lights: No
Tire Carrier - No, Factory Mount, allows for 35" tire
Notes: Simple bolt on installation, but installation does require cutting out the tall corners of the OEM plastic bumper.


_______________________

Demello Off-road

Available - Now
Price - $950 - 3-Piece Steel Rear Bumper
- $1,425 - 3-Piece Aluminum Rear Bumper
- $1,950 - Steel Rear Swing-out Bumper
Construction - 3/16in plate steel with a 1/4in thick mounting plates and 1/2in recovery points - steel bumper
- 3/16in 5052 Aluminum with a 1/4in thick mounting plates and 1in thick recovery points - aluminum bumper
Finish - Raw or +$175 Powder Coat
Shackle Mounts - Yes
Weight - ???
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes (Comes with Bumper but Installation is Optional/Unrated for Towing)
Additional Recovery Points - Yes
Lights: Yes
Tire Carrier - No, unless swing-out bumper is chosen (fits 35" tire)
Notes: 1.75in bearing serviceable hinge, Lockout latch system, Factory rear sensor ready, Rear factory camera option, Gas/water can option, Air tank mount option


_______________________

Expedition One
FJCruiserForums Supporting Vendor

Available - Now
Price - $1,000 Trail Series Rear Bumper +$80 For Powdercoating
- $1,450 Trail Series Rear Bumper with Smooth Motion Tire Carrier System +$150 For Powdercoating
Construction - One-piece, 3/16 inch steel inner structure and 1/8 inch outer structure
Finish - Raw or Powdercoated
Shackle Mounts - Yes
Weight - 80 lb to 125 lb
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes: Utilizes Factory Hitch
Additional Recovery Points - Yes
Lights: Integrated Yes
Tire Carrier - No, unless swing-out bumper is chosen (fits 36" tire)
Notes: FJ Rear sensors on certain model years/regions may require minor drilling/re-shaping holes with file, dremel, or drill bit due to variation in shapes on Toyota sensors.


_______________________

Fab Fours

Available - Now
Price - $2,530.00
Construction - 1/4' Keyed and Gusseted Mounts, 3/16" Construction D-Ring Recovery Points, 3/4" D-Ring Mounts, 1 3/4" OD tubing tire carrier, Carrier pivot rated to 1250 lbs
Finish - 2 Stage Black Powder Coat
Shackle Mounts - Yes
Weight - 185 lb
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes: Integrated Hitch Design
Additional Recovery Points - Yes
Lights: No
Tire Carrier - Yes, Swing-Out can handle 40" tire
Notes: Retain OEM Receiver Hitch and Wiring Locations


_______________________

JTA MetalWorks

Available - Special Order Only
Price - $650(w/o swingout) or $975 (w/ swingout)
Construction - 3/16" cold rolled steel plate
Finish - Bare or Powdercoating available (+$175 for standard bumper and +$225 for swingout bumper)
Shackle Mounts - Yes
Weight - ???
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes: installation optional
Additional Recovery Points - Yes
Lights: Yes: fits flush mount Duallys
Tire Carrier - Optional swing-out version available
Notes: Can also mount accessories on swing-out such as Rotopax fuel tanks


_______________________

Land Cruiser Northwest (LCNW)

Available - Special Order Only
Price - $1,495
Construction - One-piece, Steel
Finish - ???
Shackle Mounts - Yes
Weight - ???
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes: Integrated Hitch Design
Additional Recovery Points - Yes
Lights: No
Tire Carrier - No, unless custom ordered
Notes:



_____________________

LoD Offroad

Available - Special Order
Price - $753 to $1,345 Base Price
Construction - 3/16" Steel and the Swing-out uses a 1.5" Greasable Hinge Pin
Finish - Bare Steel or Textured Matte Black Powder Coat ($39 - $50)
Shackle Mounts - Yes
Weight - 65 to 155 lbs
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes: Optional Hitch Add On ($40-$45)
Additional Recovery Points - Yes
Lights - Yes: 55W Round Halogen Lights Offered ($49)
Tire Carrier - Optional: Fits 37" Tire and has optional parts that can be purchased and bolted on including the cargo basket ($249-259), Jerry can mounts ($219-249), and Hi-lift jack mount.
Notes: Swing-out can be adjusted for different size tires as well as for wheels with different levels of backspacing.


_______________
gmurrell and slymoan like this.

Last edited by FJX2000; 05-01-2018 at 08:31 AM.
FJX2000 is offline
Sponsored Links
Advertisement

post #2 of 2 (permalink) Old 02-05-2017, 11:51 PM Thread Starter
4-Corners Moderator

FJX2000's Avatar

Join Date: Dec 2011
Location: Cortez, CO or Provo, UT
Posts: 4,737
Blog Entries: 21
Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 443 Post(s)
Garage
Lifetime Supporting Member
(Thread Starter)
re: The NEW Rear Bumper Comparison Thread

Metal Tech 4x4
FJCruiserForums Supporting Vendor

Available - Now
Price - Rear Tube Style Bumper - $799.95
- Red Eye Rear Swing Out Bumper - No Longer Made
- Red Eye II Full Shell Swing Out Bumper - $1,650 (Stage 1), $1,850 (Stage 2), $2199 (Stage 3)
Construction - Tube Style Bumper - One-piece, 1 " x .120 wall U.S. made steel tubing
- Red Eye Swing-out - Multi Piece- made from 7 different thickness of steel to maximize strength, spare fuel can rack (steel) and fuel can holders (5052 marine aluminum)
- Red Eye II Swing-out - Single Piece - latch system for swing out featuring two UHMW CNC machined plastic ware pads for no squeaks - offered in 3 different stages with additional options
Finish - Powder Coated
Shackle Mounts - Yes; Integrated solid " shackle pull point mounted directly to the fully boxed corner mounts
Weight - 142 (Red Eye Bumper)
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Tube Style Bumper - Integrated Hitch Design
- Red Eye Swing Out - Utilizes Factory Tow Hitch (Instalation Optional)
- Red Eye II Swing Out - OEM hitch is not used but 2 types of Metal Tech hitches available, one being OEM-style and the other high-clearance style
Additional Recovery Points - Yes
Lights: No; Tube and Red Eye Bumpers, Yes; Integrated Flush Mount Diffused LEDs for Red Eye II
Tire Carrier - No; Tube Bumper, Yes; Red Eye & Red Eye II Bumpers
Notes: includes full U.S. made metric mounting hardware. Spare Tire Carrier on Red Eye Bumper has adjustable offset for different rims and tire widths. Holds a full size 35" inside the body lines for off road performance (can easily hold a larger tire like 40"). Red Eye II addresses issues with Red Eye bumper; one piece design, better latch system, fits 36" tire, lowest Hi-Lift JAck mount, antenna/sand flag mount, kit available to swing out opens with rear door.


_______________________

Paramount Automotive

Available - Now
Price - $774.00
Construction - One-piece, 5/32" Steel Plating
Finish - Black Textured Powder Coated
Shackle Mounts - Yes
Weight - ???
Factory Back-up Sensor Compatible? - No
Tow Hitch - No: Aftermarket Hitch Required (Part Provided by Paramount Automotive?)
Additional Recovery Points - Yes
Lights: No
Tire Carrier - Yes, Swing out and Jerry-can holder
Notes: High strength D-Ring mounts welded both inside and out, D-Rings included - 4.75 ton capacity


_______________________

Road Armor

Available - Now
Price - $1,699.00
Construction - One-piece, 3/16-inch outer steel shell, 1/4-inch-thick internal mounting brackets and gussets
Finish - Raw or Satin Black
Shackle Mounts - No
Weight - ???
Factory Back-up Sensor Compatible? - No
Tow Hitch - Yes: Utilizes Factory Hitch?
Additional Recovery Points - No
Lights: No
Tire Carrier - No
Notes: a lifetime guarantee against breakage


_______________________

Smittybilt

Available - Now
Price - $899.00
Construction - One-piece, 3/16" cold rolled steel with 1/4" mounting plates
Finish - Powder coated in Smittybilt's signature series two stage powder coat
Shackle Mounts - Yes, 7/8 inch solid D-Ring mounts, welded inside and out
Weight - ???
Factory Back-up Sensor Compatible? - Yes, spots are designed for sensors but holes must be drilled
Tow Hitch - Yes: Utilizes Factory Hitch
Lights: Yes
Tire Carrier - No
Notes: Smittybilt Advantage Warranty: Limited Lifetime Warranty and Two Stage Matte Black Finish Powder Coat Finish: 5 year Limited Warranty


_______________________

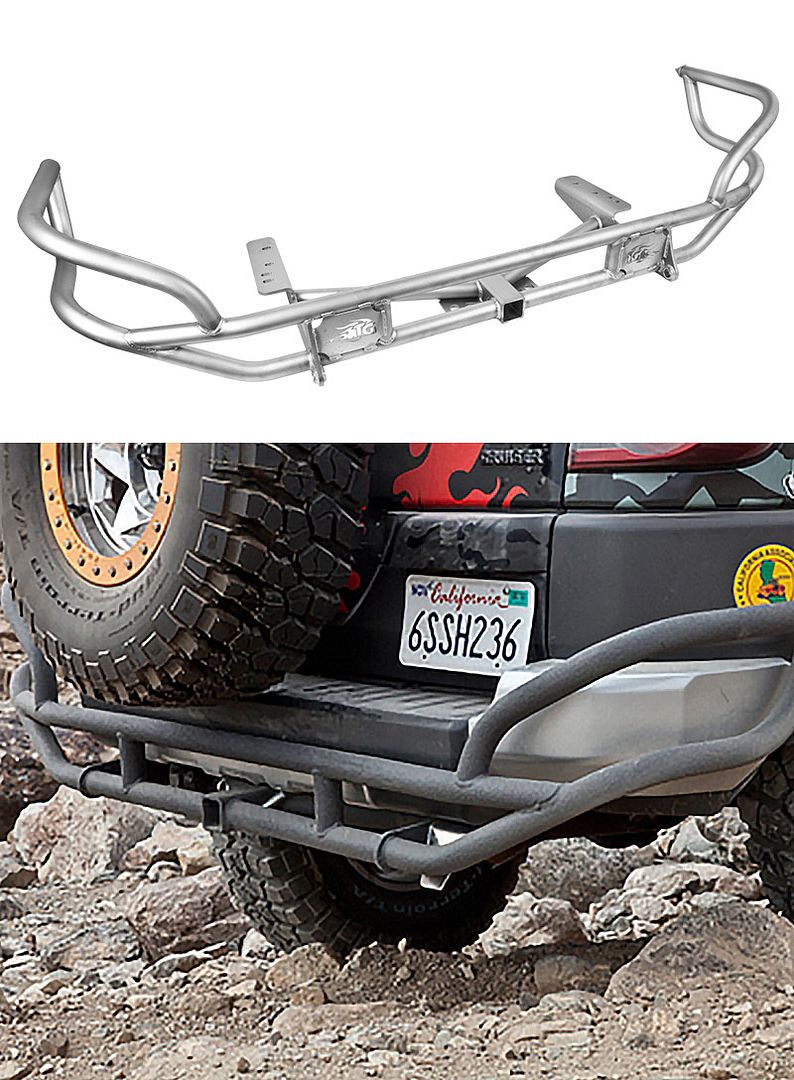

Trail-Gear

Available - Now
Price - $441.03
Construction - One-piece, 1.75" x .120" wall, DOM material
Finish - Raw
Shackle Mounts - Yes
Weight - ???
Factory Back-up Sensor Compatible? - No
Tow Hitch - Yes: Integrated Hitch Design (meets the tow rating requirements for SAE J684 and V-5 Class 3)
Additional Recovery Points - Yes
Lights: No
Tire Carrier - No: factory carrier used
Notes: true "bolt on" product, no cutting or welding required


_______________________

VPR 4x4

Available - Now
Price - $1,176 - Non Swing-out Bumper
- $2,058 - Swing-out Bumper
Construction - One-piece, Steel A36 Lightweight design, 1/4" plate reinforcements and mountings
Finish - Textured powder coat finish: Black
Shackle Mounts - Depends on model
Weight - 158 lb
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - No
Additional Recovery Points - No
Lights: No
Tire Carrier - No: unless swing-out version is chosen
Notes: Mounting system to allow a "custom" fit



_______________________

WAM Bumpers

Available - Now
Price - $660
Construction - 6" x 6" x 3/16" wall tube, fully enclosed, integral license plate recess with lights is included, mounting brackets are 1/4” steel. 1/8” diamond plate step area.
Finish - Primer only, primer + satin black (powdercoat?), or primer + bed liner
Shackle Mounts - Yes
Weight - 120 lbs
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes: Integrated hitch
Additional Recovery Points - Yes
Lights: Optional integrated lights
Tire Carrier - Optional along with optional gear mounting options
Notes: Website lacking photos but some provided by Loganbeere. Many options available for bumper including trailer plugs, integrated lights, swing-out gear options, and shackles or D-ring mounts.


_______________________

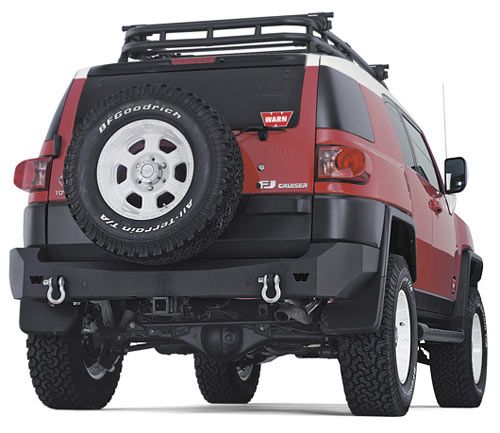

Warn

Available - Now
Price - $989.55
Construction - One-piece design with welded eyelets to mount D-shackles
Finish - black powder-coated wrinkle finish
Shackle Mounts - Yes
Weight - ???
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes: Utilizes Factory Hich
Additional Recovery Points - Yes
Lights: No
Tire Carrier - No: uses factory mount, allows for 33" tire
Notes:


_______________________

Warrior Products
FJCruiserForums Supporting Vendor

Available - Now
Price - $670 Rear Bumper without D-Ring Mounts
- $828 Rear Bumper with D-Ring Mounts
Construction - One-piece
Finish - powdercoat finish
Shackle Mounts - Yes if included with model
Weight - 105 lb
Factory Back-up Sensor Compatible? - Yes
Tow Hitch - Yes: Utilizes Factory Hitch
Additional Recovery Points - Yes
Lights: No
Tire Carrier - No: uses factory mount
Notes: compatible with the Man-a-Fre brand extended fuel tank

FJ Newfs, debFJVT, slymoan and 1 others like this.

Last edited by FJX2000; 04-01-2018 at 11:05 AM.
FJX2000 is offline
Closed Thread

  Toyota FJ Cruiser Forum > FJ Cruiser Technical Articles & Buyers Guides > Buyers Guides & Product Comparisons

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Toyota FJ Cruiser Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
