Re: HAM radio install & antenna pics

Quote:
greengoose previously said: View Post
You could start selling those as kits
I copied a guy that used to manufacture them. His name is Jerry, KR7KZ, it's his design. QST even ran an article on them a while back. He gave me the plans to build them. He doesn't make them anymore.

2007 Voodoo AT, MF-50 compressor, AP Sliders, Kenwood D710A VHF/UHF
Lift - 3" Toytec Ultimate Lift
Tires - 295/70R17 Cooper MAXX
73
D-Rock is offline
Sponsored Links
Advertisement

post #22 of 26 (permalink) Old 12-08-2014, 10:49 PM
Forum Superstar

Vegas_Nick's Avatar

Join Date: Jan 2011
Location: Las Vegas, NV
Posts: 3,079
Blog Entries: 1
Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 404 Post(s)
Re: HAM radio install & antenna pics

Quote:
D-Rock previously said: View Post
I copied a guy that used to manufacture them. His name is Jerry, KR7KZ, it's his design. QST even ran an article on them a while back. He gave me the plans to build them. He doesn't make them anymore.
You still 'sperimenting with antennae?!
Vegas_Nick is offline
post #23 of 26 (permalink) Old 12-09-2014, 09:08 AM
Forum Veteran

D-Rock's Avatar

Join Date: Jul 2011
Location: West Richland, WA
Posts: 572
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Re: HAM radio install & antenna pics

Quote:
Vegas_Nick previously said: View Post
You still 'sperimenting with antennae?!
LOL, the Jpole has served me well for 5 years, I think I might retire it next year and go to a higher gain dual band NMO style 5/8 whip. I have it mounted on a Bandi mount now, it has been there for a couple of years. When I first had it on the truck I had it up on the roof rack. It was just too tall up there, it hit everything.. even a low power line at my 'rent's house.. eeek..

I have made a bunch of these Jpoles. Truckers love them. I guess they work very well with their fiberglass cabs. I know of 2 UPS drivers that have had them on there trucks, for years and years..

I'm currently building a 1986 Yota single cab truck. My Brother in law has a 85 Yota single cab truck as well.. we have been using this radio http://www.amazon.com/LEIXEN-VV-898-...bile+dual+band along with a bunch of these radios http://www.amazon.com/BAOFENG-BF-888...=1418141229920 for trail communications... they work FANTASTIC!

D
Vegas_Nick likes this.

2007 Voodoo AT, MF-50 compressor, AP Sliders, Kenwood D710A VHF/UHF
Lift - 3" Toytec Ultimate Lift
Tires - 295/70R17 Cooper MAXX
73
D-Rock is offline
Sponsored Links
Advertisement

post #24 of 26 (permalink) Old 12-12-2014, 09:32 PM
New Member

Join Date: Nov 2014
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Re: HAM radio install & antenna pics

I have been meaning to get these pics posted for a couple of weeks, and life has just gotten in the way too much lately.

I recently acquired a 2013 FJ and immediately got to work putting together the mobile station. The antenna is a homebrew screwdriver that I built about fifteen years ago that I ran on my old 94 Suburban until the purchase of the FJ.
It has proven to be an admirable performer and has held up well to a significant number of miles and QSOs.

I decided to use the ladder as the attachment point, requiring the construction of custom mounting blocks. Thankfully, I have the good fortune of being a machinist and having a my own equipment, just for such projects. The mounting blocks were made from aluminum bar stock. The antenna bracket is the original bracket that I made when I built the antenna.

[IMG][/IMG]

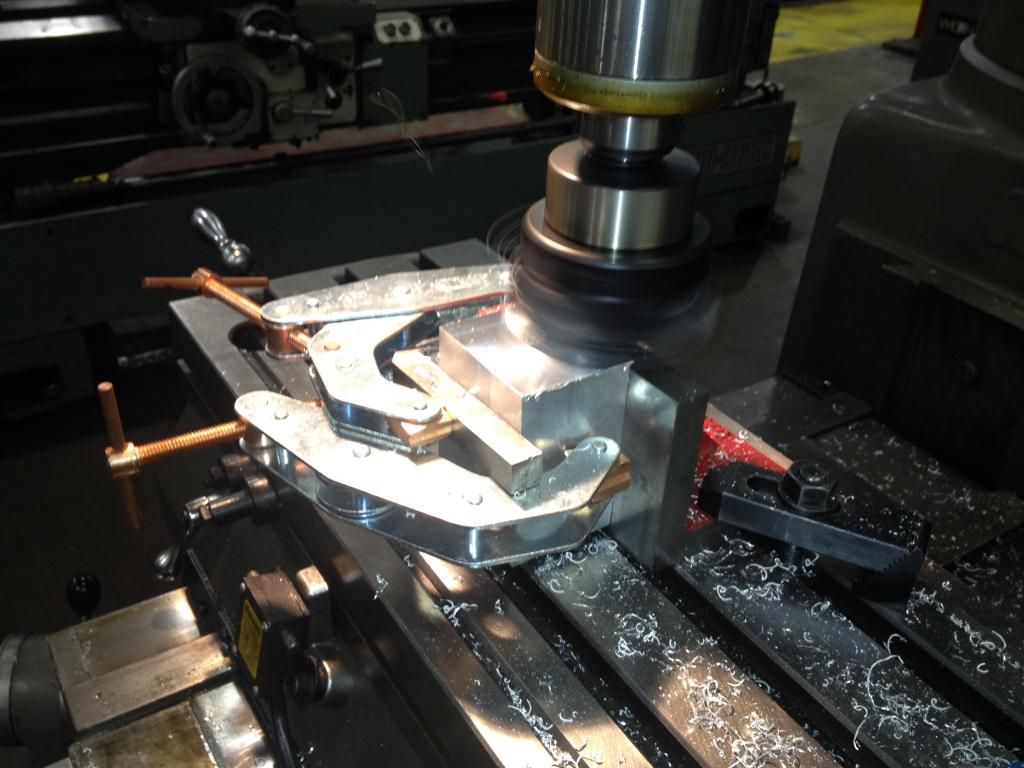

squaring the aluminum blocks

[IMG][/IMG]
shaping the "cap" portion of the clamps

[IMG][/IMG]
Gotta have bolt holes

[IMG][/IMG]
Boring the hole to fit the ladder

[IMG][/IMG]
Closeup of the final clamps in place

[IMG][/IMG]

[IMG][/IMG]
Mounting the radio and RigRunner

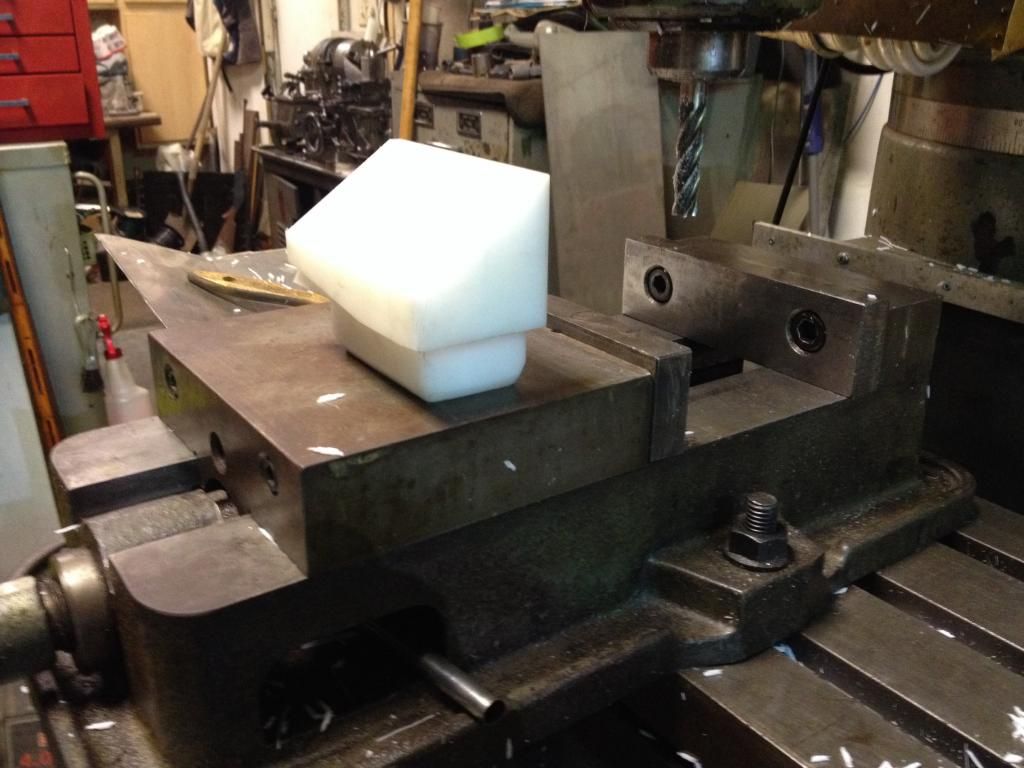

mounting the control head for the radio required a bit more machine work, but this time out of a block of nylon that I had laying around.
[IMG][/IMG]

[IMG][/IMG]

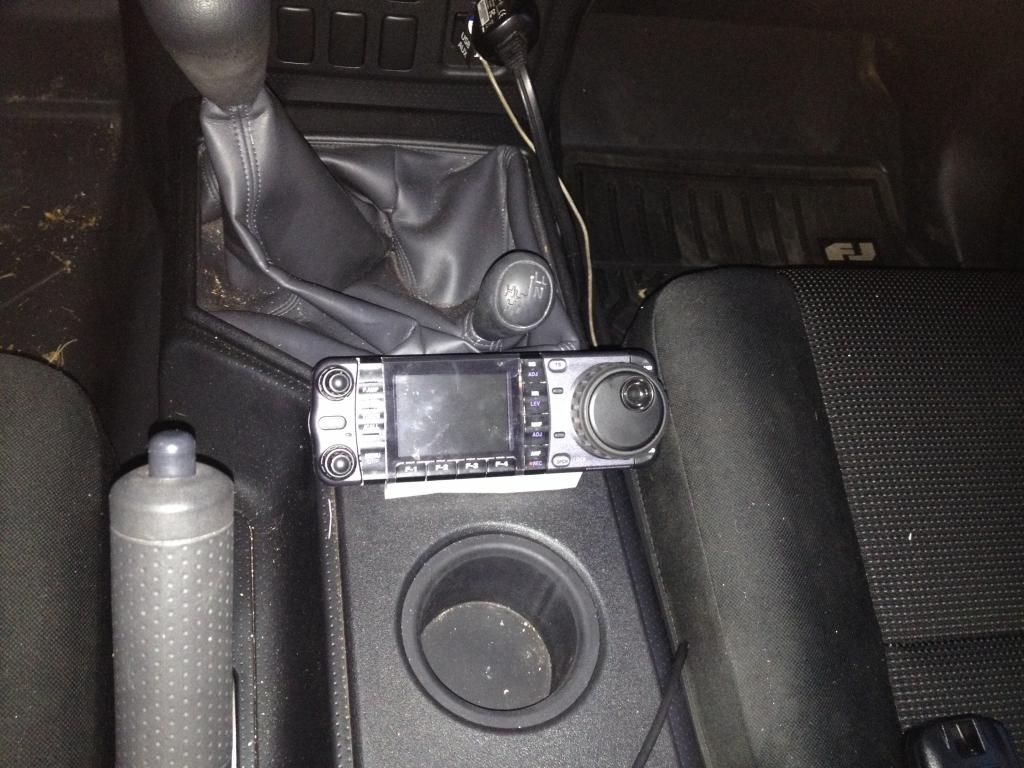

The block is made to fit the coin tray located just behind the gear shift (MT), and is held in place by 3M adhesive backed velcro.

[IMG][/IMG]


At the time that these pics were taken, there was still a bit of cleanup to do in the form of cutting power and control cables to length and getting everything plugged in and mounting the control box for the screwdriver antenna.

I still need to get a 2m/70cm antenna mount made, but that will have to wait until I get some other projects completed.

Justin
Flyboy_451 is offline
post #25 of 26 (permalink) Old 12-13-2014, 12:18 AM
Forum Superstar

cruiserlarry's Avatar

Join Date: Apr 2006
Location: Los Angeles
Posts: 2,888
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Lifetime Supporting Member
Re: HAM radio install & antenna pics

I run a Kenwood TM-D710A and a Yaesu FT857D, with a Diamond 2m/440 retractable antenna and a Yaesu ATAS-120A auto-tuning HF antenna. The radios are hooked up to a Panasonic Toughbook for APRS mapping / messaging and HF logging...along with with a Clearspeech DSP speaker and various other related items....
Attached Thumbnails
Click image for larger version

Name:	20140329_085848.jpg
Views:	4519
Size:	789.9 KB
ID:	367041   Click image for larger version

Name:	DSC04888.JPG
Views:	898
Size:	871.4 KB
ID:	367049

" I'm not aware of too many things, but I know what I know, if you know what I mean..."

"Before you criticize someone, walk a mile in their shoes... that way when you do criticize them, you're a mile away, and you have their shoes..."

W6LPB / WPOK492

TLCA #9632

cruiserlarry is offline
post #26 of 26 (permalink) Old 12-13-2014, 08:47 AM
Forum Superstar

CactusJK's Avatar

Join Date: Mar 2006
Location: Livermore, CA
Posts: 2,432
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Re: HAM radio install & antenna pics

Always great to see pictures of Larry's mobile HAM shack!

K7JNZ
CactusJK is offline
