TapTurn flasher relay install

I think this write up could go in multiple forum locations but i will start by posting it under electrical (sorry if its in the wrong place).

I took info from a number of threads before i tackled this so here is my experience of this relay swap out mod, bear with me because i do go into a lot of detail when i write up my experiences with modifications....



Firstly i started by removing the fuse box cover panel to have a feel for the relay location. I also attempted to remove the silver panel above (with the air vent) but totally gave up on that... honestly... you do not need to take that off anyway....

There is no dignified way to do it, so i pushed the seat back and lay on my back in the foot well, head up to the brake peddle! i was able to feel the relay and turn on the signal to verify i had the right one. the camera was helpful in "seeing" up under the dash because i couldn't contort my head to see with my eyes.. now being female, i an not the same build as a stocky fella, but i am not slight either, so the average guy should be able to approach this the same way, or ask the other half to help out :-)....see below pics.

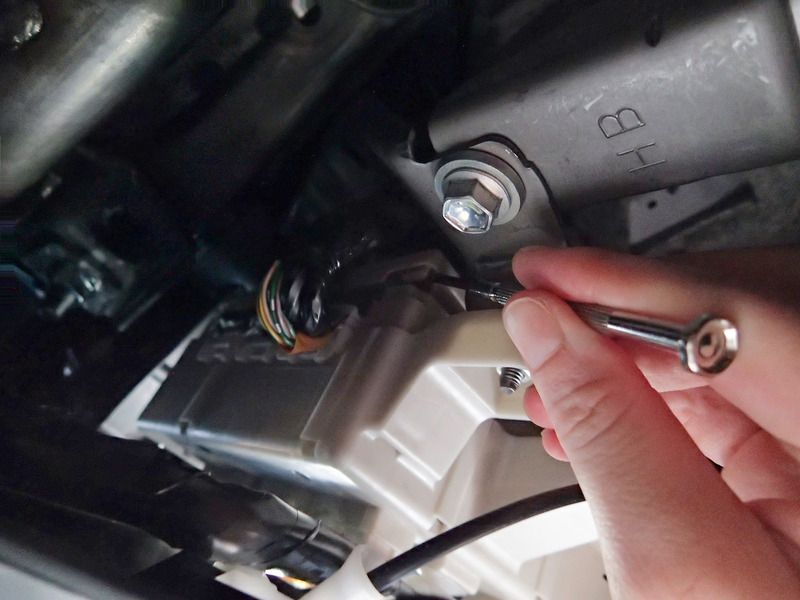

Now, the relay is circled but it is impossible to release it without breaking the clip when it is in this location attached to the fuse box lid, but i read on another thread that someone "accidentally" dislodged the fuse box lid, so this MUST come off somehow. Where the arrows are on the photos above i prized with my hands and a jewellers screw driver and released the clips to free the lid.

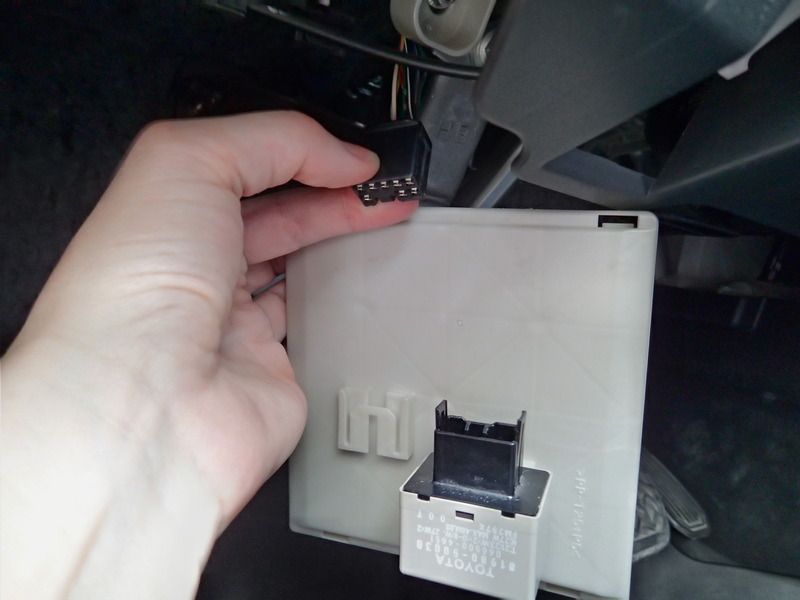

Once the lid is free you can rotate it on the wiring harness into the footwell to access the relay/wire plug


Free the plug but splitting the side clips on the relay and pushing in the tab on the wiring plug closest the fuse box lid and you will feel it release and you can take it apart.

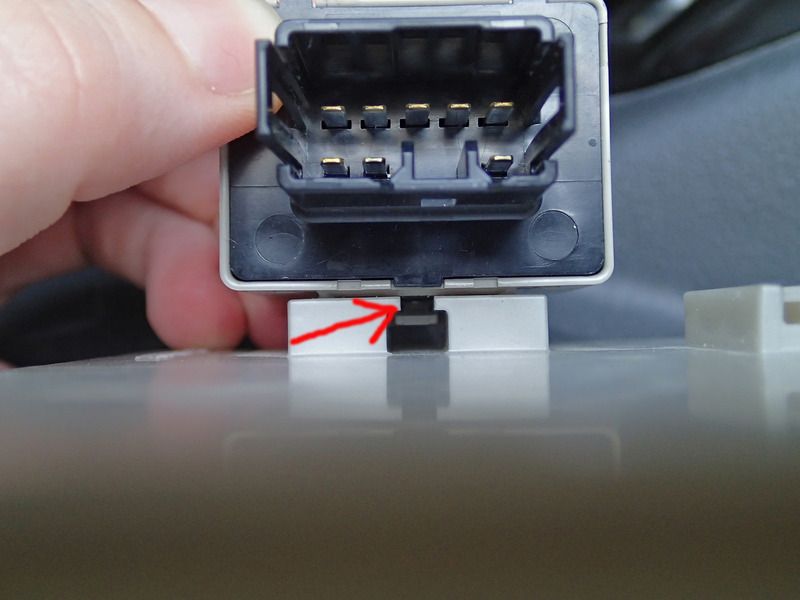

to free up the relay from the fuse box lid you need to get a small jewellers screw driver and release the clip like below:

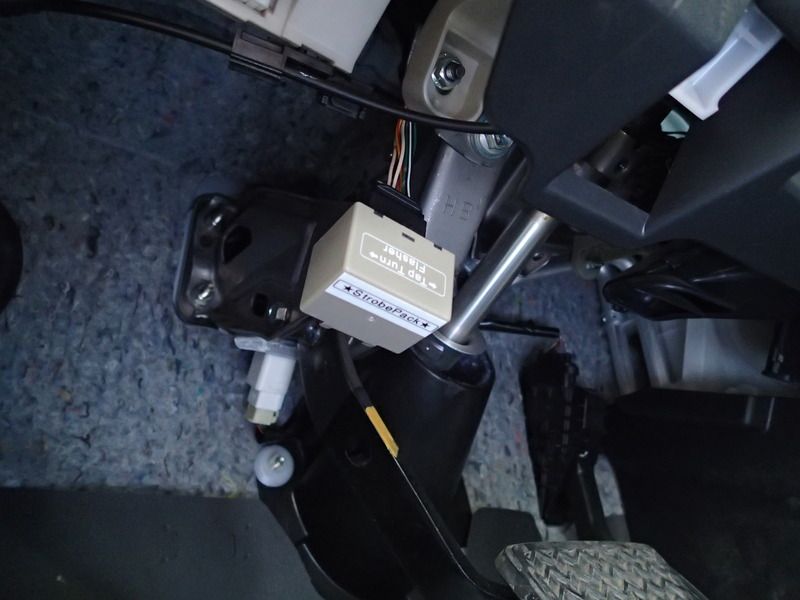

I then connected the tap turn relay to the wiring loom and tested it out.... before i reassembled it.

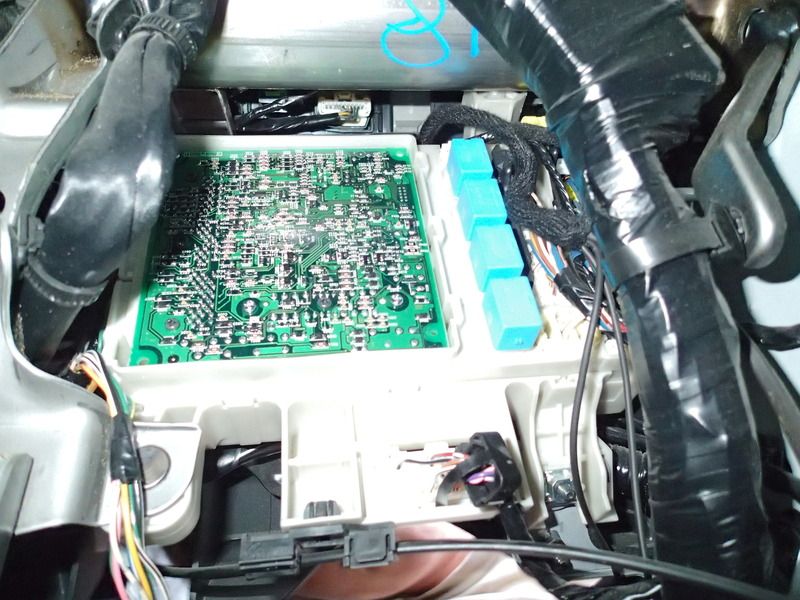

You want to put the lid back on the fuse box though because by removing it, it exposes the back of the circuit board.

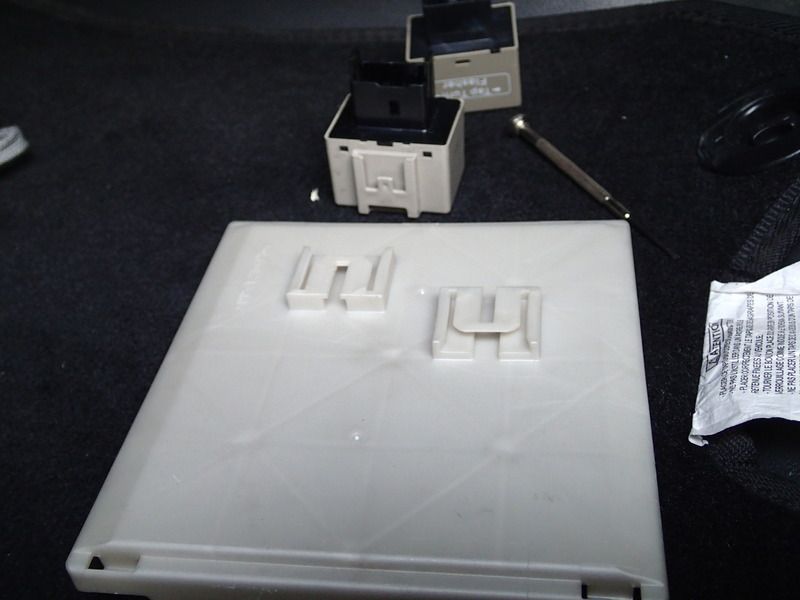

When you slide the new relay onto the fuse box lid before replacing it, just slide it in to bind, don't push it on properly, that way you can quickly swap it out if needed. Then just push the lid back on the fuse box and adjust/ play with your TapTurn functions...

I set it to strobe signal and hazards and i am loving the one touch signalling... it was one of my bugbears on the FJ that it wasn't a standard feature. I highly recommend this modification and the supplier was very helpful, fast to act and shipping took no time (that was from Canada to UAE!).

Iceberg FJ Xtreme Edition (AT285)
285/70R17 tires Cooper Discoverer A/T3
17x8 Arctic Trucks alloy wheels
40mm suspension lift front/rear
Bonnet scoop
Anzo black amber eagle eye front signal units
WeatherTech window deflectors
TapTurn signal relay
IPCW Bermuda Black rear LEDs
DXB_Extreme is offline
Sponsored Links
Advertisement

post #2 of 19 (permalink) Old 10-30-2015, 05:06 PM
Forum Superstar

bazross's Avatar

Join Date: Jul 2011
Location: Sydney, Australia
Posts: 10,537
Blog Entries: 1
Mentioned: 127 Post(s)
Tagged: 1 Thread(s)
Quoted: 1738 Post(s)
Garage
Lifetime Supporting Member
Re: TapTurn flasher relay install

G'day,
Nice write up, well done.
Cheers
Baz
DXB_Extreme likes this.
bazross is offline
post #3 of 19 (permalink) Old 10-30-2015, 05:32 PM
Forum Master

FAUJI's Avatar

Join Date: Jan 2009
Location: 49th Parallel
Posts: 1,458
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Lifetime Supporting Member
Thumbs up Re: TapTurn flasher relay install

great much needed write up.
DXB_Extreme likes this.
FAUJI is offline
Sponsored Links
Advertisement

post #4 of 19 (permalink) Old 10-30-2015, 05:44 PM
Forum Superstar

Join Date: Jun 2010
Posts: 1,631
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Re: TapTurn flasher relay install

Only if that relay wasn't so expensive.
floppyD is offline
post #5 of 19 (permalink) Old 10-31-2015, 04:22 PM
Forum Veteran

Alpine FJ's Avatar

Join Date: Apr 2014
Location: Hillsboro, Oregon
Posts: 538
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 144 Post(s)
Lifetime Supporting Member
Re: TapTurn flasher relay install

Nice write up!

2013 Magma
TLCA #23190
Alpine FJ is offline
post #6 of 19 (permalink) Old 11-01-2015, 09:22 AM
Forum Superstar

sonof40's Avatar

Join Date: May 2007
Location: San Ramon, CA
Posts: 3,050
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 242 Post(s)
Re: TapTurn flasher relay install

Best write-up I've seen in years. (even though if it did come stock my mod would be to remove it)
Great job. Keep'm coming.
DXB_Extreme likes this.

Steve
TLCA 14294
KJ6DAA

http://1971fj40.blogspot.com/

"A man is his own easiest dupe, for what he wishes to be true he generally believes to be true."
Demosthenes c.383-322 BC
sonof40 is offline
post #7 of 19 (permalink) Old 11-18-2015, 08:09 AM Thread Starter
Member

DXB_Extreme's Avatar

Join Date: Jan 2014
Location: Dubai, UAE
Posts: 65
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
(Thread Starter)
Re: TapTurn flasher relay install

Thanks all!
I posted this movie i took on another thread too.

Really happy with it and i have noticed that the fools on the roads here are less inclined to accelerate to close the gap when you change lanes.... (the mentality of the majority of the road users here "is see space and it has to be filled".... even if you are signalling way in advance to move over..... and they do it in a dangerous way too....) i put their hesitation down to the strobe setting.... they really are not sure about it

http://vid6.photobucket.com/albums/y...er/TAPTURN.mp4

Iceberg FJ Xtreme Edition (AT285)
285/70R17 tires Cooper Discoverer A/T3
17x8 Arctic Trucks alloy wheels
40mm suspension lift front/rear
Bonnet scoop
Anzo black amber eagle eye front signal units
WeatherTech window deflectors
TapTurn signal relay
IPCW Bermuda Black rear LEDs
DXB_Extreme is offline
post #8 of 19 (permalink) Old 11-18-2015, 09:07 AM
Forum Veteran

Luthier-Atlanta's Avatar

Join Date: Oct 2015
Location: Atlanta
Posts: 431
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Re: TapTurn flasher relay install

Interesting mod, great write up.
DXB_Extreme likes this.



Screw Milk - Got Wood
Luthier-Atlanta is offline
post #9 of 19 (permalink) Old 12-04-2015, 12:46 PM
Forum Regular

LDRydr's Avatar

Join Date: Aug 2015
Location: WA in the PacNorWet
Posts: 273
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Garage
Re: TapTurn flasher relay install

Great instructions, I used them just now to install my TapTurn. Thanks!
DXB_Extreme likes this.

LDRydr - The Long Distance Rider (why yes, actually I HAVE been everywhere)
---------------------------------------------------------------------------
2013 FJ Iceberg White 4x4 Auto
2012 Yamaha Super Tenere
2006 Yamaha FJR1300 (sold when it reached 100k miles)

"Hey, look mister, we serve hard drinks in here for men who want to get drunk fast, and
we don't need any characters around here to give the joint atmosphere. Is that clear?"

--Nick the bar owner, "It's A Wonderful Life"
LDRydr is offline
post #10 of 19 (permalink) Old 12-11-2015, 04:49 AM Thread Starter
Member

DXB_Extreme's Avatar

Join Date: Jan 2014
Location: Dubai, UAE
Posts: 65
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
(Thread Starter)
Re: TapTurn flasher relay install

Quote:
LDRydr previously said: View Post
Great instructions, I used them just now to install my TapTurn. Thanks!
No problem
After Christmas I am go to tackle the horn.... Just got a Wolo bad boy... Can't wait to fit it😊
