Discussion Starter #1 (Edited)
I wont get into the details surrounding the need to replace my clutch at only 143k. See the various throwout bearing threads...

I referred to the pdf files of the Toyota manual for the FJ but found that a lot of steps could be eliminated or worked around. Since I was documenting for this post, I took a lot more time than otherwise needed. A lot of little things kind of took more time being careful not to bust anything..

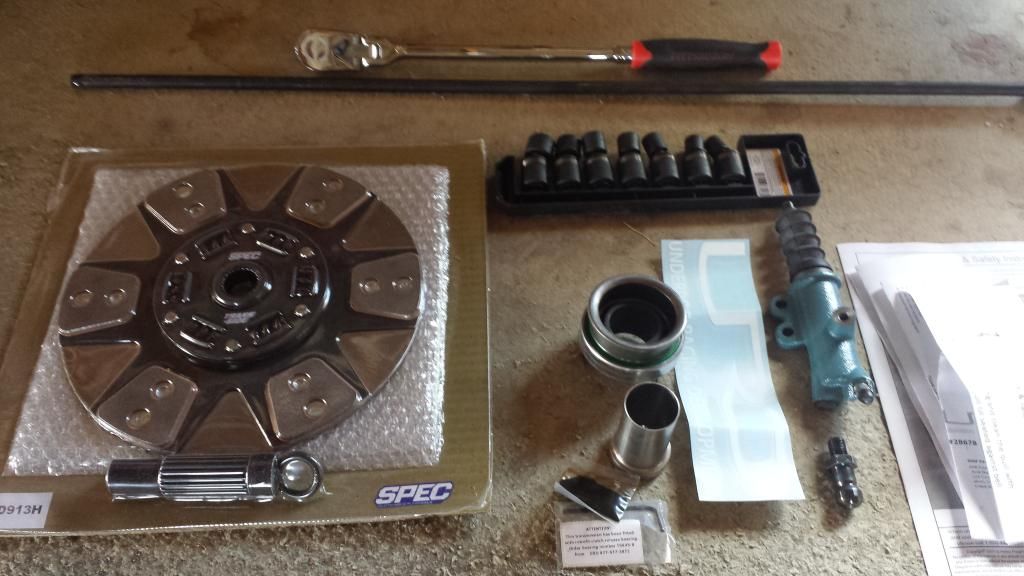

Tool requirements are pretty basic but as others have posted a couple tools are essential, primarily the 36" extension adapter 1/2-3/8" drive. I got mine from Snap-On but if you have time, they are available for almost half the price online. Make sure you get the impact version - I would have broken mine if it had been the non-impact version.

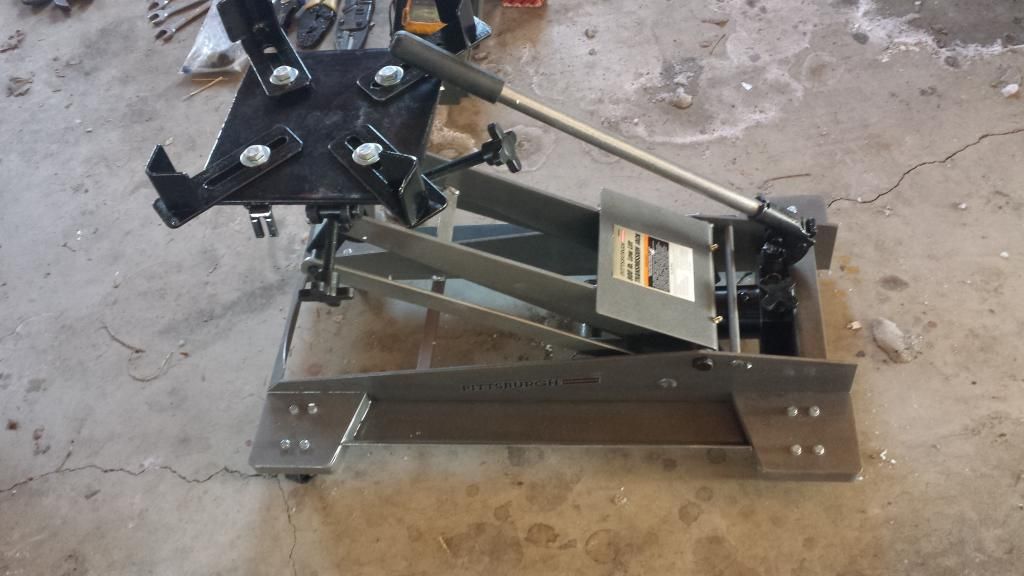

Secondly the 3/8" drive 14 & 17mm wobble sockets. I got a set at Harbor Freight for $25, along with the better transmission jack.





Since my input shaft quill had wear on it at 37k requiring the replacement of the bellhousing I figured 110k on this one was going to have more wear so I ordered the PDM sleeve kit from URD. I also purchased the Toyota TSB components that had never been replaced: Slave cylinder and pivot stud for the throwout fork.

Here are the comparisons between the old and new TSB parts.

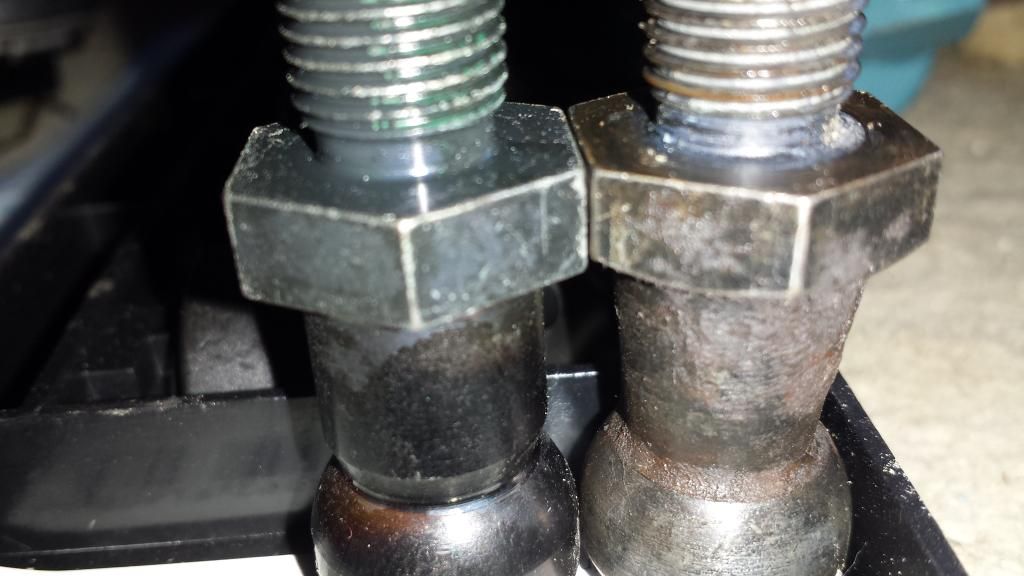

The ball design on the pivot stud is different but the length is the same.

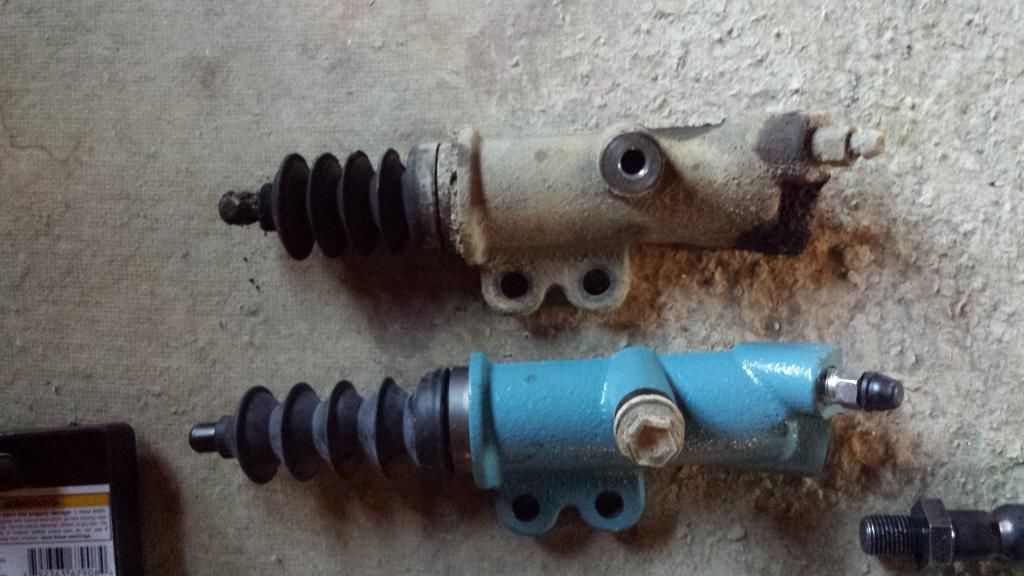

The slave cylinder as has been pointed out in other threads did not fully function which kept the TO bearing against the clutch and did not allow the clutch to fully engage...

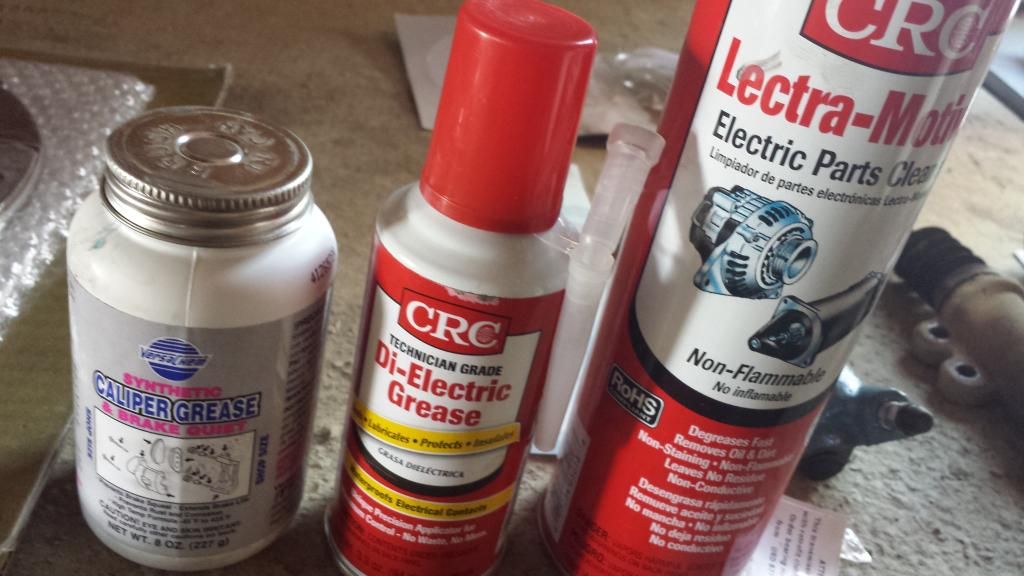

A couple other items to purchase while getting ready for this job:



Use the caliper grease (high temp waterproof) and fill the slave cylinder boot in order to prevent future failure due top corrosion.
Use the electrical cleaner to clean out all the electrical connectors and, if you are not machining the flywheel, to clean it residue free before reassembly.
Put some of the dielectric grease in each of the connectors for additional protection against moisture.

Since my FJ is riding on 34's and an Icon Stage lift I didn't bother to run it up on ramps etc. and it worked out fine.

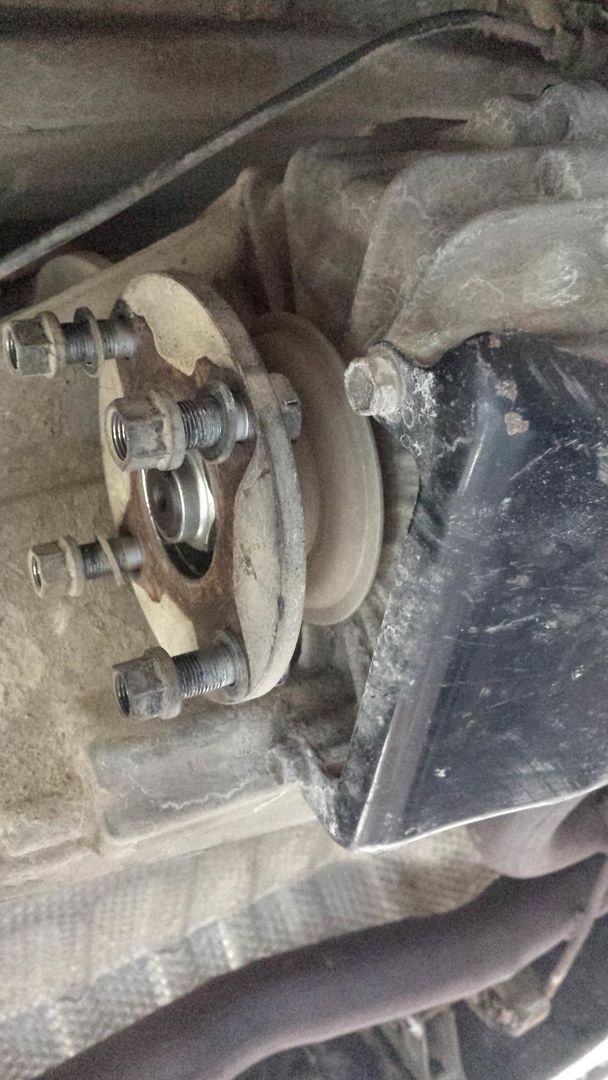

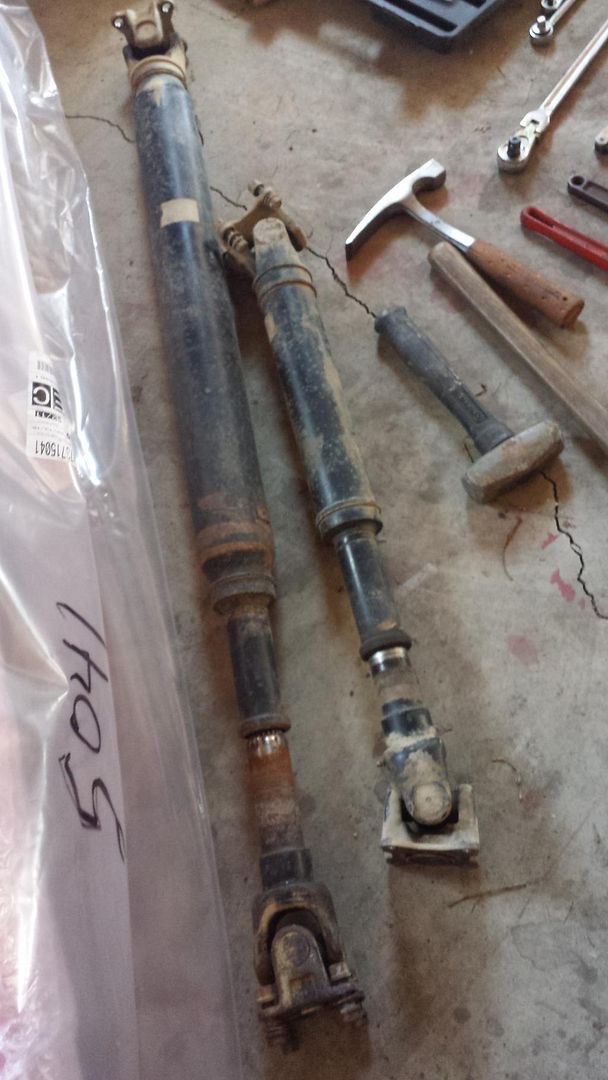

First thing I did was remove both drive shafts - pretty straight forward job. The studs on the transfer case flanges are fixed, no tool required to hold them.

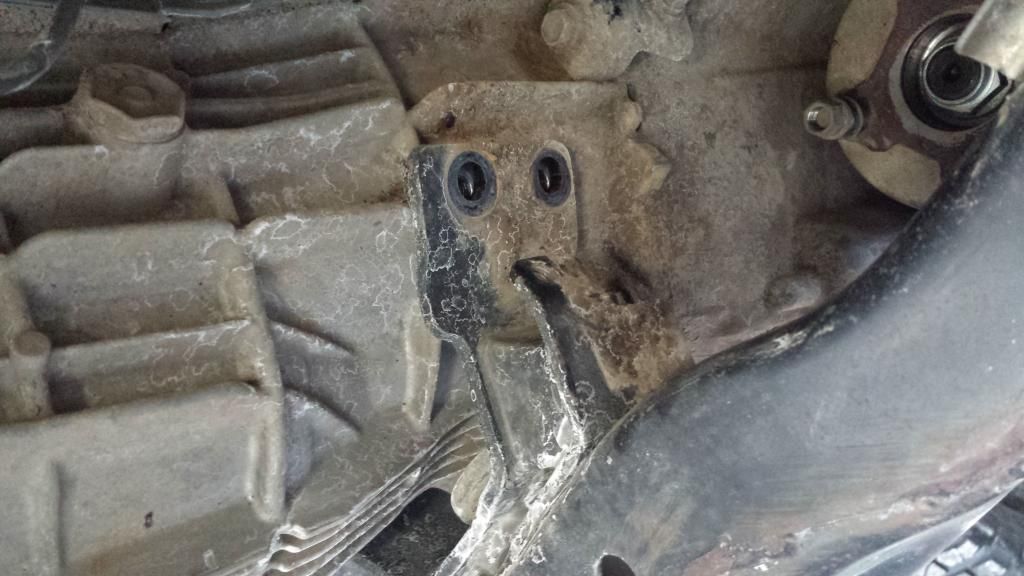

Next I removed the bolts that attach the rear trans mount to the tranny. I did not follow the Toyota manual in removing the entire mount.

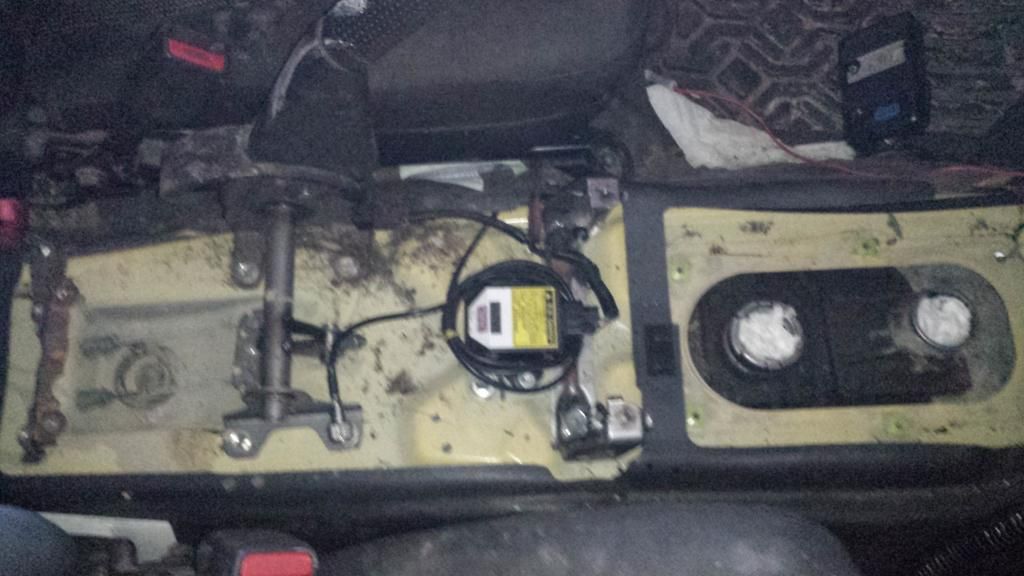

Then I removed the center console cover, gear shift knobs, then the console.
Followed the Toyota manual on that because I hadn't had it off for a while. Mine was a little more complicated because my Cobra CB is mounted under there...





Removing the shifter lever boot is straightforward... the Hi/Lo lever then comes off with just the bolts, the gear lever has a little cup with a two notches in it. As Toyota says - take a rag, push down on the cup and turn CCW. It only takes maybe a 1/8th turn and then it will come up and the lever just pulls out.

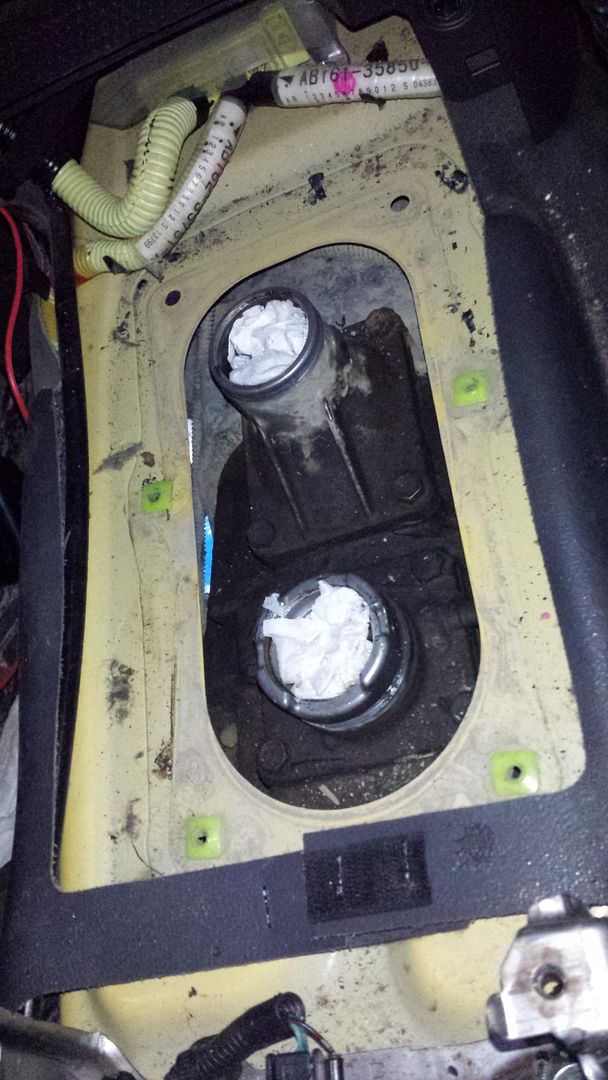

Have a couple paper towels or rags to stuff in the holes for when removing the trans nothing falls inside.

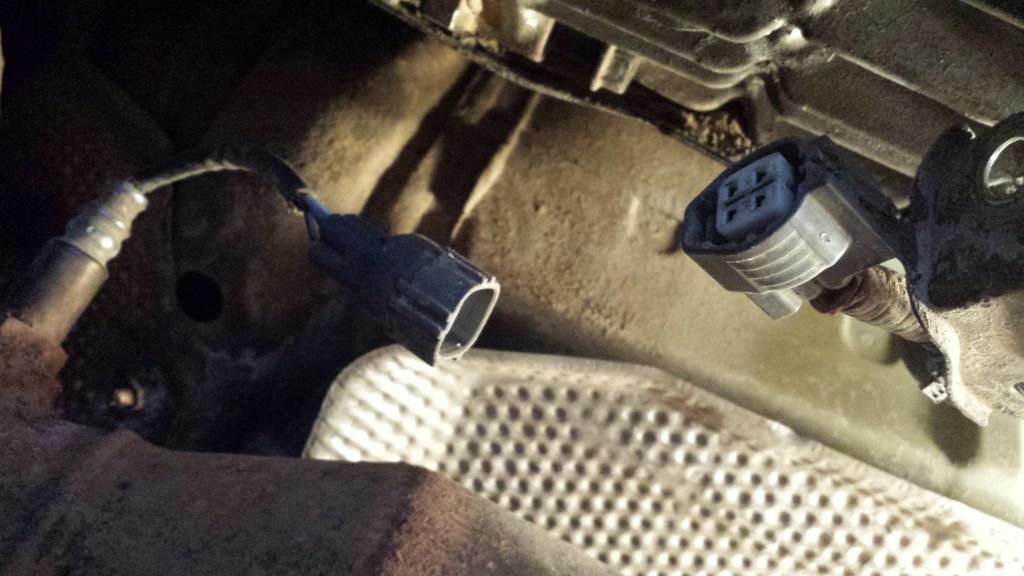

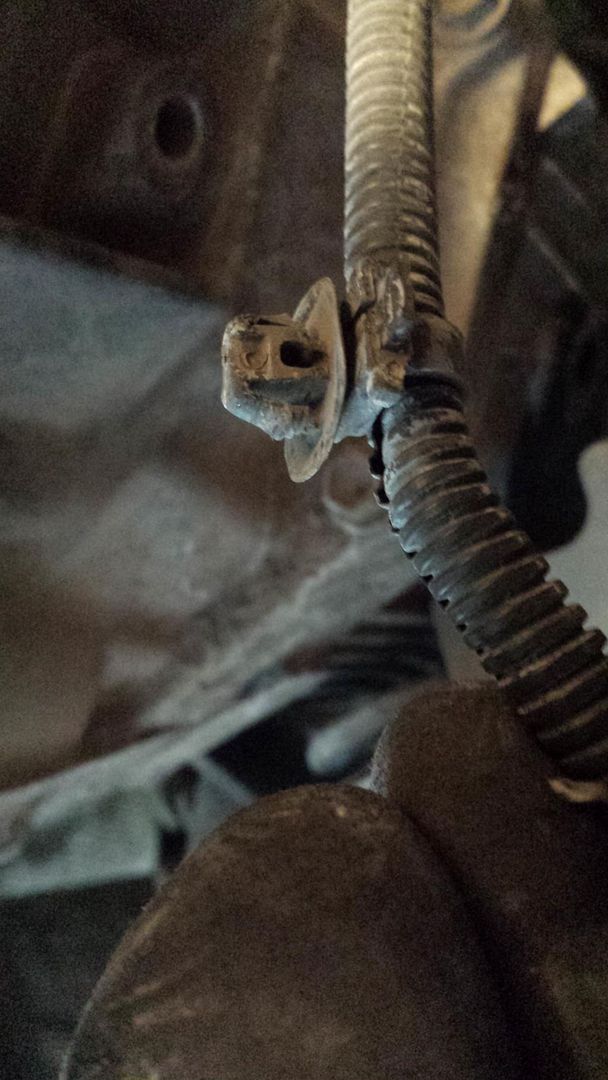

After that I just started at the back end of the transmission and disconnected electrical connections. I disconnected 6 total... where I could I left the brackets in place and popped the clip out of the hole.

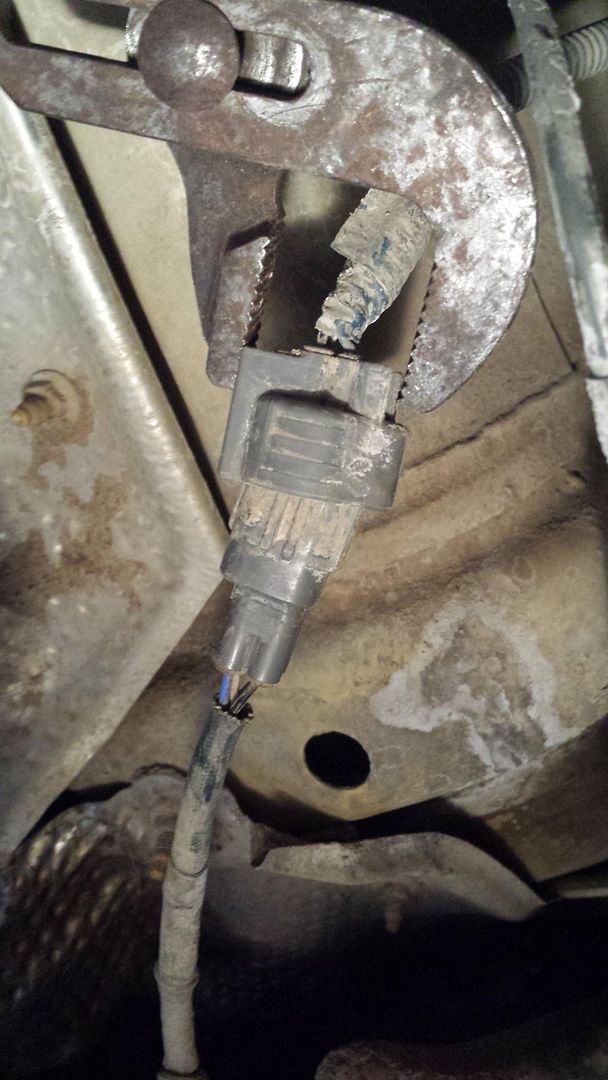

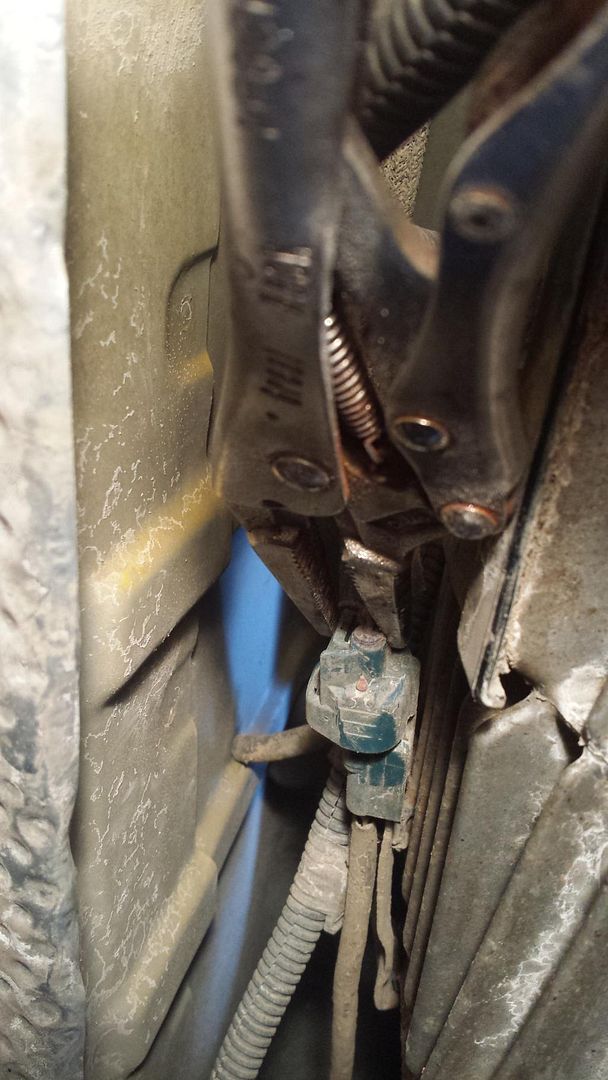

I used a needle nose vise-grip and channellock pliers in order to squeeze the little tabs and wiggle the plugs loose.










·
Premium Member
Joined
·
1,470 Posts
Discussion Starter #3
I think i had photobucket upload problems.I'll see if I can finish it soon...


·
Premium Member
Joined
·
2,204 Posts
LOL yes way more Just did mine last month!


·
Registered
Joined
·
748 Posts
Except for getting the first few bolts thru the bell housing going back in I did mine alone over a two day period


Sent from my iPad using Tapatalk


·
Registered
Joined
·
1,212 Posts
Got it done too by myself. Including:
• URD Torque-U flywheel
• Centerforce Dual-Friction clutch
• URD Throwout Bearing Upgrade/repair kit w/stainless steel sleeve
• Toyota TSB components: slave cylinder and pivot stud


·
Registered
Joined
·
141 Posts
Got it done too by myself. Including:
• URD Torque-U flywheel
• Centerforce Dual-Friction clutch
• URD Throwout Bearing Upgrade/repair kit w/stainless steel sleeve
• Toyota TSB components: slave cylinder and pivot stud
More details about sourcing these parts and actual replacement will be appreciated!


·
Registered
Joined
·
8 Posts
More details about sourcing these parts and actual replacement will be appreciated!
I did the clutch replacement my self 2 months ago following this video
it gives you a pretty much step by step guide on how to do it. I would highly recommend a 36 inch extension for the upper bell housing bolts makes life alot easier. Sourcing the parts listed is all from URD and Toyota . Though you can get them all from rock auto / Toyota as well. Hope that helps.


·
Registered
Joined
·
141 Posts
I did the clutch replacement my self 2 months ago following this video https://www.youtube.com/watch?v=Cjg9DMUv56g it gives you a pretty much step by step guide on how to do it. I would highly recommend a 36 inch extension for the upper bell housing bolts makes life alot easier. Sourcing the parts listed is all from URD and Toyota . Though you can get them all from rock auto / Toyota as well. Hope that helps.
Thank you for the information. I have already seen that video.

The 36 inch extension is simple enough to get, but what scares me are the rusty exhaust connections and whether I will be able to manhandle the gearbox from under a truck set up on jackstands in my garage. Any pointers in that sense? How tall does one have to raise the truck to get the gearbox/jack combo out? That height will determine what type of jack to fit under it.


·
Premium Member
Joined
·
1,793 Posts
rusty exhaust bolts = cutting wheel (and leather gloves and a face shield on you while you do it)

they come right out when you use the circular tool (and the sparks are pretty, try not to cut the pipe flanges)

if after removal, the pipe flange mating surfaces are also badly rusted, then go at them with a flapper disc, takes only a minute to clean them right up for re-assembly

Buy new bolts made of stainless, or if you use regular carbon steel nuts/bolts, then smear some anti-seize on their threads for easy removal next time (I've been amazed taking apart exhaust fasteners coated with the stuff, even years later, in rusty Michigan).

Norm


·
Registered
Joined
·
141 Posts
rusty exhaust bolts = cutting wheel (and leather gloves and a face shield on you while you do it)

they come right out when you use the circular tool (and the sparks are pretty, try not to cut the pipe flanges)

if after removal, the pipe flange mating surfaces are also badly rusted, then go at them with a flapper disc, takes only a minute to clean them right up for re-assembly

Buy new bolts made of stainless, or if you use regular carbon steel nuts/bolts, then smear some anti-seize on their threads for easy removal next time (I've been amazed taking apart exhaust fasteners coated with the stuff, even years later, in rusty Michigan).

Norm
The extensions arrived today, and the other parts are on order.


·
Registered
Joined
·
54 Posts
Guys, I know most of you are like me and don’t own or have access to a car lift. That being said, I want to suggest a whole different approach to replacement of the clutch components. How about pulling the engine instead? About the earlier stated concerns about rusty exhaust fasteners, oxy /acetylene torch or map gas. Typically “ stabbing “ the trans main shaft through the clutch disc splines and then into the crankshaft pilot bearing can be a real pain. Where the FJ Cruiser is concerned this idea of lining up the clutch splines with the still stationary transmission by wiggling the “ cherry picker “ suspended engine in place might be the easier way to go, because.....there is no pilot bearing with this design. So it goes without saying ,this is the jack stands under vehicle approach. Thoughts anyone? Remove radiator, dismount A/C compressor and secure to inner fender, maybe do the same thing with the P/S pump....I don’t think pulling the engine would be that hard.


·
Premium Member
Joined
·
1,793 Posts
"I don’t think pulling the engine would be that hard."

Wow, pulling the engine involves far more disassembly, and disruption of the rest of the vehicle, including, typically, removing the hood (and wire harness connections, and draining the cooling system, and pulling the radiator(s) and air intake and fuel lines, and so on).

Pulling a transmission is undoing 2 or 3 wire connections, the clutch line, the 4 bolts for the drive shaft and the MT x E/G bolts. With the vehicle up on jack stands it is awkward, and a transmission jack (borrowed/rented from auto parts store) but still way less work than pulling an engine, typically (to pull the engine a crane/hoist is needed as well, so the transmission jack is a kind of a wash).

Lining up the clutch splines with the transmission input shaft: put the MT in high gear, and rotate the driveshaft flange back and forth a little while moving it forward into the clutch. That helps the splines line up as it goes in.
