This thread is more of a way for me to keep track of what I have done to the 40 and what I want to do to the 40.

So, without further adieu.......

How she sits today 4/18/13:

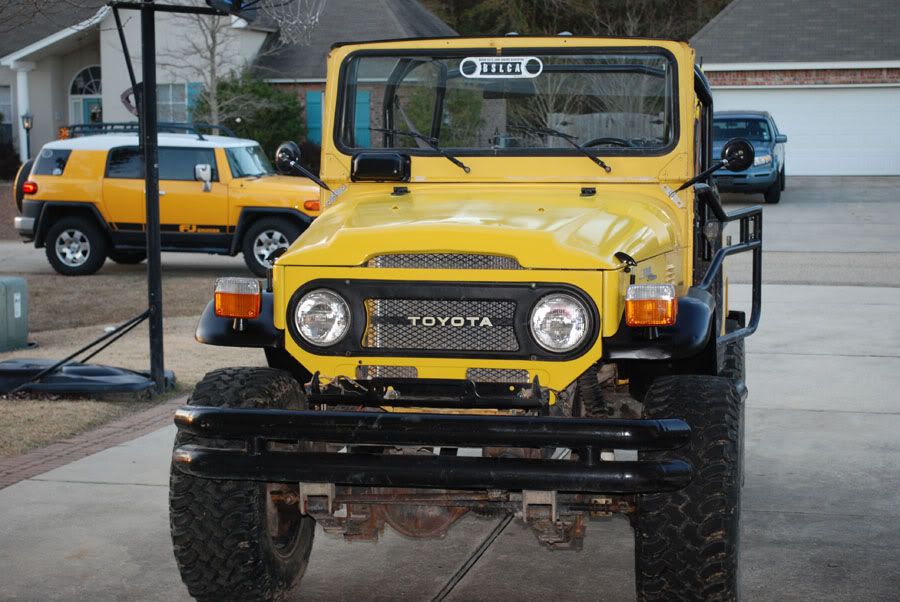

Her name is Hachi. This is how she looked the day I got her from Brian, a fellow BSLCA member.







First ride I took her on was at The Devil's Backbone in Crossroads, Ms. Damn, those springs are tight!! That was a rough ride.



Brian and the PO's had already done many of the upgrades I would have wanted to do.

From one of Brian's For Sale threads on what was previously done:

The PO was a TLCA member and a friend of some BSLCA members, who also helped build it around 99 - 2000. They did a frame off resto and added the crate 350 from Summit at that time.

- 350SBC conversion using the AA bellhousing
- AA Twin stick kit
- custom covered yellow/black 40 seats
- stock front disc brakes and rear disc conversion from a Monte Carlo (I think)
- saginaw power steering
- 33" BFG MTs (5) with 80% tread
- custom rear swingout bumper w/ tire carrier
- h**p bench seat in back w/ shoulder belts from a Montero
- 2 1/2" lift springs
- 1 1/2" body lift
- stock 4 speed tranny w/ 3 spd transfer case
- Tuffy center console
- STOUT pipe bumper and rock sliders (more like rock crushers)
- custom aluminum dash cluster
- Inside of tub is completely rhino lined
- Aussie locker installed in the rear
- Installed rebuilt Quadrajet carb, new plugs and wires
- Installed new shocks front / Rancho and rear / Edlebrock


But, as I had told Brian when I bought her, I planned to take her to the next level. So, since this is really going to be a trail-only rig and ride-around-town-on-sunny-days rig, there was no need for the hard doors. I was able to find a set of RedLine tube doors from another MUD member who had them sitting around in his garage. I sanded, primed and painted them satin black. Now I am getting to more of the look I want.





No pictures but then I added a Uniden CB with a Firestick antenna for on the trails. Around the same time I also added an Alpine CD / MP3 stereo with a USB jack in the face so I can just load MP3's on a jump drive and play them through the Alpine. This way I don't have to bring my iPod on the trails. Works GREAT! The Alpine is mounted in the Tuffy center console and the CB is mounted in the dash where the OEM stereo went. I mounted some old surround sound speakers I had laying around to the roll bar. I plan to add a switch so that I can use the stereo speakers as external speakers for the CB.

Next, the springs were too stiff for my liking. So, when Larry offered up his 4" Skyjacker springs, I bought them. The BSLCA guys on the eastern side of the state got together one night to help me swap the springs.

Old springs:



New springs:



Not much of a difference in height but what a difference in the ride. Here's all the cruisers we had in the shop at Deryl's that night.

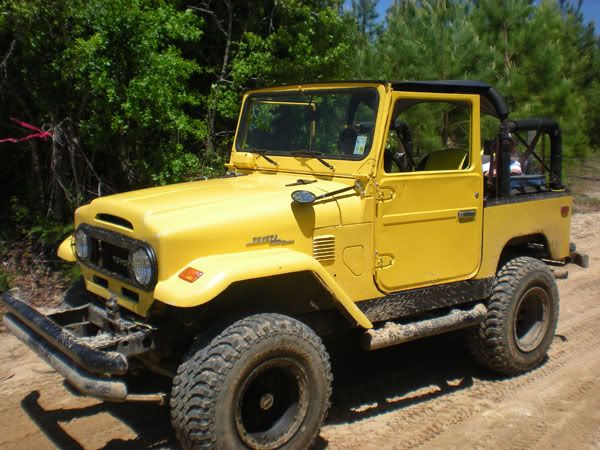

Had to test them out on the trails. This was at Paradise for the Hero Hustle ride.






I was having some overheating issues so I bought and installed a 3 core aluminum radiator from Champion Radiators. I also changed out the thermostat at that time. Good thing as someone had installed the wrong one for a Chevy 350. No more heat problems.

Next up, I had to test things out again and what better place to do that than Superlift for the SCC '10.





Had lots of fun there but just to be sure, I had to test things out again at Sicily Island.....

FINALLY!!

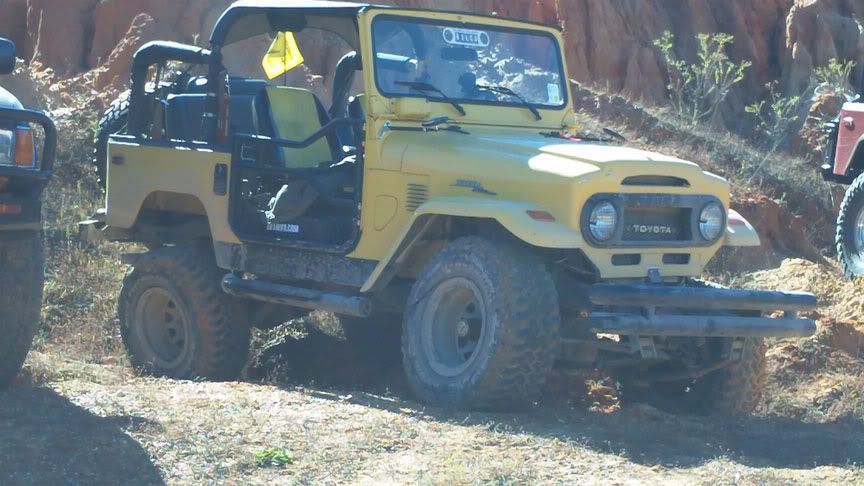

Flexing.....


Flexing the other side......


·
Registered
Joined
·
3,403 Posts
Discussion Starter #2 (Edited)
Next on the list:
  • change tie rod ends and steering stabilizer (DONE)
  • have the rear bumper swing out re-workedinto a double swing out so it doesn't sag and add a jerry can basket. Also, going to incorporate the hitch into the bumper. (DONE)
  • bend the hitch back in place and reinforce the rear cross member (DONE)
  • build a storage box out of angle iron and mesh steel for under the rear bench (got the material)
  • install 4 point harnesses front and rear (fronts are done)
  • install new 3 core aluminum radiator (DONE)
  • cut piece of 1/4" plate to fit over holes in the tranny tunnel cover (DONE)
  • replace fiberglass front end with steel parts (DONE)
  • re-paint the rig (DONE)
  • install a family roll cage (DONE)
  • upgrade to 35" MT's (DONE)
....and not in that particular order.


·
Registered
Joined
·
3,403 Posts
Discussion Starter #3 (Edited)
Finally got the 40 to the welder a few days ago. He sent me this pic about 2 hours later.....



Takes him a while to get you in there (he is super busy) but when he gets you in, he doesn't play around. It's just tacked up in the front right now. He was a bit concerned about the bends in the original hoop behind the driver / passenger seats and the hoop I picked up from Larry. They did not match and JD is a perfectionist (maybe that's why it takes soooooo long to get in his shop) so he said he is going to "fix it". I can't wait to see what he comes up with. He is also re-designing my rear bumper with a swing-out and integrated hitch along with some other work. :D


·
Registered
Joined
·
3,403 Posts
Discussion Starter #4 (Edited)
Well, JD, my master welding guru, didn't like the way it looked in the previous picture due to the different radius bends in the two hoops.

You can see what the two hoops looked like together. I wound up with the rear-most hoop from this rig.




So, this is what JD came up with.....



It's a little different but I like it. I am going to see it in person tomorrow morning and we will work out the final details.


·
Registered
Joined
·
3,403 Posts
Discussion Starter #5 (Edited)
As for the construction, JD is a master and a perfectionist. I went by his house yesterday and it's coming along nicely. The cage is complete, just have to drill a few more holes in the floor to be able to bolt it in. The welds look great to me. He did not use a wire fed weld.....I don't know what he called it but it looks better than anything I have ever soldered. :lol:

He took the rear bumper apart, moved the spare over to the driver's side along with moving the pivot to the driver's side and will be building the jerry can basket tonight and in the morning. He says he should have it back to me by Friday. Also, I did not know this until today, but he also builds auxillary fuel tanks. He builds them out of aluminum. That is something that is on my list of must haves.

Here is what I found when I went by his shop today......



I am getting more anxious by the day to get this thing back from him. He just needs to finish off the lock / latch for the tire carrier, mount the winch plate on the front and he is making me a mount for my camera on the dash bar. Should have it back in a day or so.


·
Premium Member
Joined
·
16,793 Posts
Well its about time Mike, hahaha.

We still need to go out wheeling. Let me know when there is a local trail ride. I will be picking up some new tires in the next month or so.

The 40 is looking great!


·
Registered
Joined
·
3,403 Posts
Discussion Starter #9
Thanks guys. It is certainly a labor of love. After I get it back from my welder, I've got to start looking for where I am leaking fluids. I have an IPOR skid plate that I want to install but if I install it now, it is just going to be a bowl to collect all the leaking fluid. :(


·
Registered
Joined
·
3,403 Posts
Discussion Starter #10 (Edited)

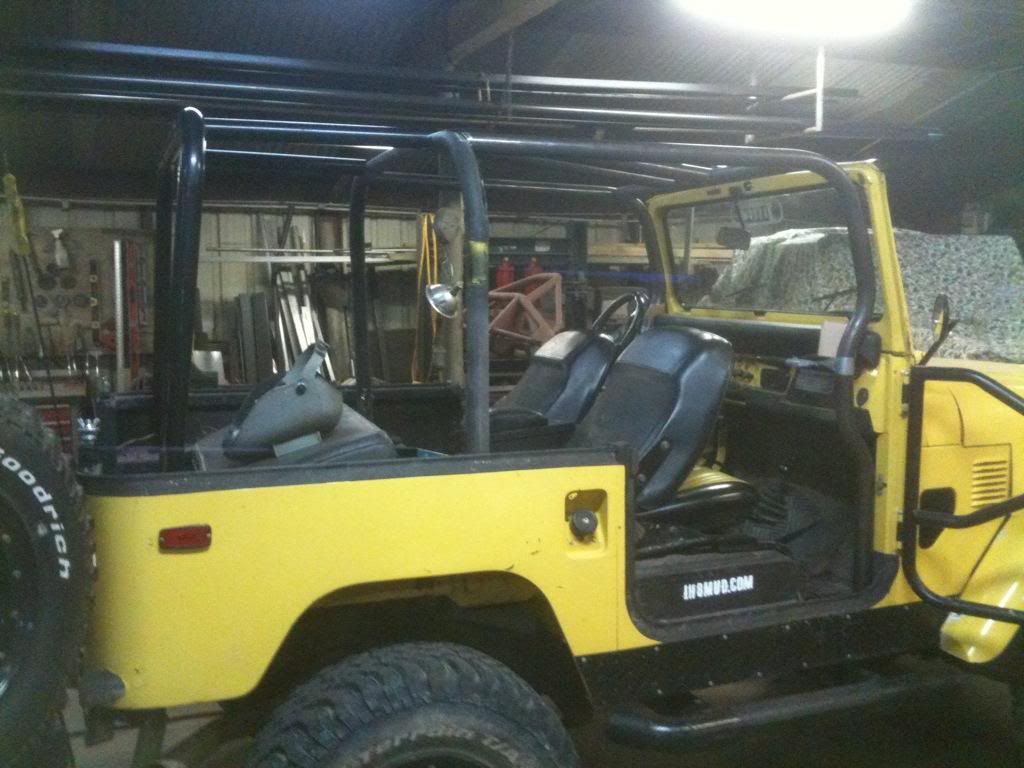

Well, he added some "A" to "B" supports to the cage and finished up the last few small things. I will be going to pick it up tomorrow and then start the process of sanding and painting the truck and the cage.



·
Registered
Joined
·
3,403 Posts
Discussion Starter #11
Last night a buddy and I yanked the cage out. The OEM roll bar had some kind of bedliner material on it and I was told by JD that it didn't grind off very well and made a hell of a mess.....he wasn't kidding. We tried melting it off and that made a huge mess. So, I got after it with a bad a$$ grinder that was doing the job but it was slow going and the dust in the air was incredible. After about a half hour of that I noticed that the material was beginning to peel off one of the feet of the cage. So, I took a box cutter and cut the material from the top of the bar to the bottom. Then, using a scraping tool, began to "peel" the material off the bar. This is a small pile of what came off......



Once I got it all cleaned up, I wiped the whole cage down to get rid of the oil residue on the Metal Tech bars and wiped the rest down for good measure.

All primered up......



I was too tired to take pictures of the finished product. I will get some of those today. Looks GREAT I do have to say. :bigthumb:


·
Registered
Joined
·
3,403 Posts
Discussion Starter #13
Thanks for the kind words. More pics to come as soon as this weather clears. Hope to have the sheet metal parts for the front end painted this weekend and installed soon afterwards.


·
Registered
Joined
·
3,403 Posts
Discussion Starter #14 (Edited)

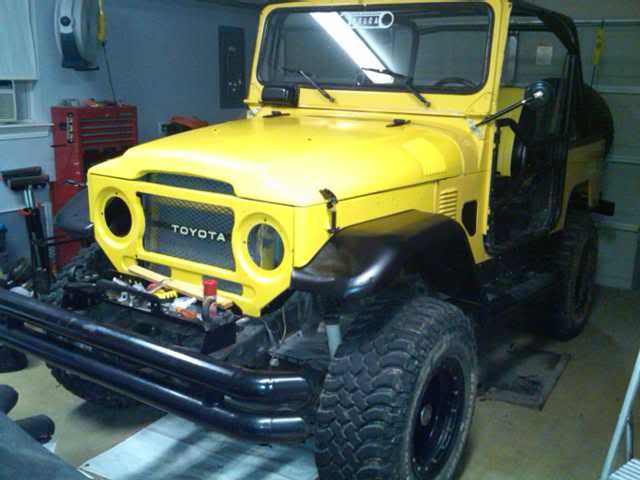

Well, got some stuff done today, nothing major but just one more step closer to getting this rig looking like I want it. Got the newly painted hood, bib, aprons and fenders mounted up today. The color is not an exact match but it's close. The new yellow is "brighter" than the old so the entire truck will be getting new paint soon after the Superlift trip. I am sooooo glad to finally get rid of the fiberglass front end......well, at least got it off the rig. It's sitting in the yard. Also got the cage all bolted in.





Tomorrow I hope to get the lights, bezel and marker lights mounted up.


·
Registered
Joined
·
3,403 Posts
Discussion Starter #15 (Edited)
Got most of my last minute list done today. Got the headlight buckets and headlights in (found out the long way that the buckets that fit the fiberglass do NOT fit the metal bib :mad: ), got the turn signals mounted on the fenders and the new thermostat for the fan mounted, wired and adjusted. :rocker:














Tomorrow I will be wiring up the headlights and turn signal, fixing the rear tailgate panel so it doesn't rattle and get that skid plate installed. :bigthumb:


·
Registered
Joined
·
3,403 Posts
Discussion Starter #17
Thank you very much. I was able to get the headlights, turn signals and license plate lights wired up today.....what a PITA going behind someone else's wiring. I also got the tailgate secured and the fire extinguisher installed (this one I may really need :lol:)


·
Registered
Joined
·
3,403 Posts
Discussion Starter #18
Well, after a great trip to Hot Springs, it's time to move forward. I started taking her apart again to prep her for her new paint job. We should have her done next weekend. Will post more pics after she gets her new paint. For now, here's one from Hot Springs.



·
